Safety Speed Vertical Panel Saw with 74'' Maximum Crosscut H6
Product Description
The H6 Panel Saw provide a 74″ crosscut, ideal for cutting a 10′ X 6′ piece of material, up to 1.75″ thick while only occupying 30 square feet of floor space. A motor made by Milwaukee Tool is currently used on the H6 vertical saw.

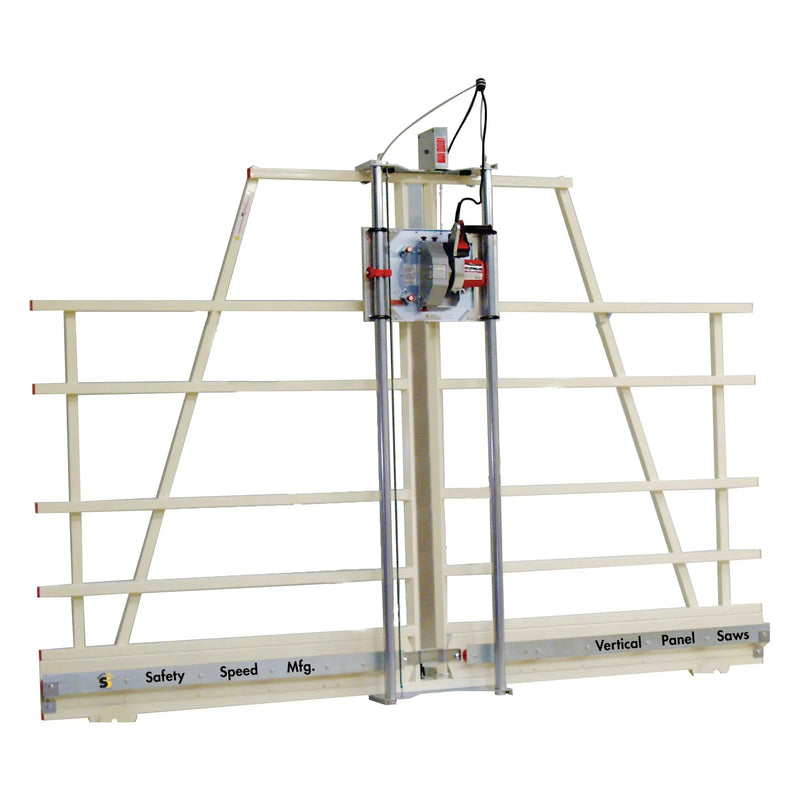

Photos are shown with a stand, and wheels which are optional accessories.
Standard Equipment
- Zinc plated 1¾”steel guide tubes.
- 4 Nylatron roller bearing systems.
- Milwaukee Tool Motor
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Injection-molded plastic material rollers.
- Spring loaded counter balance system.
- Integrated dust collection bonnet.
- Extended warranty.
- TUV certified to UL/CSA standards
Specifications
| Weight | 359 lbs |
| Dimensions | 120 × 11 × 95 in |
| Max. Crosscut | 74"/1850mm |
| Max. Rip Cut | Unlimited |
| Cut Depth | 1 ¾"/45mm |
| Cut Accuracy | 1/32"/.8mm |
| Frame Length | 120"/3050mm |
| Daily Usage | 1-3 Hours |
| Rollers | 14 |
| Saw Blade Diameter | 8"/210mm |
| Motor amperage and volts |
15 amp, 120 Volt, 7.5 amp, 220 Volt
|
| Motor Manufacturer | Milwaukee Tool |
Product Documents
Product Manual
Product Parts
H6 Panel Saw Sales Sheet
Features and Benefits of Cutting Vertically with an Accessorized Machine
