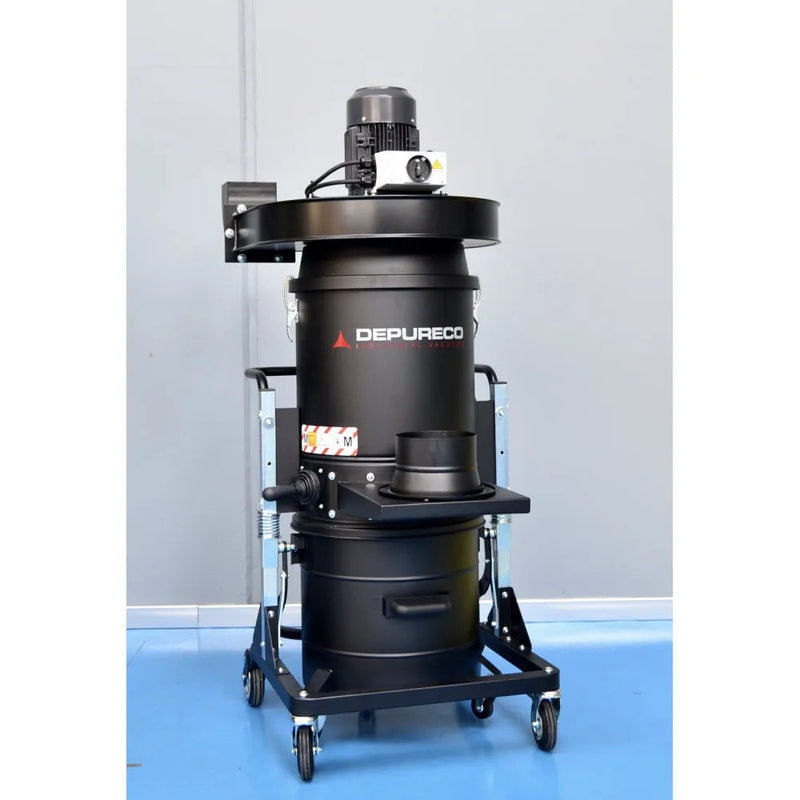

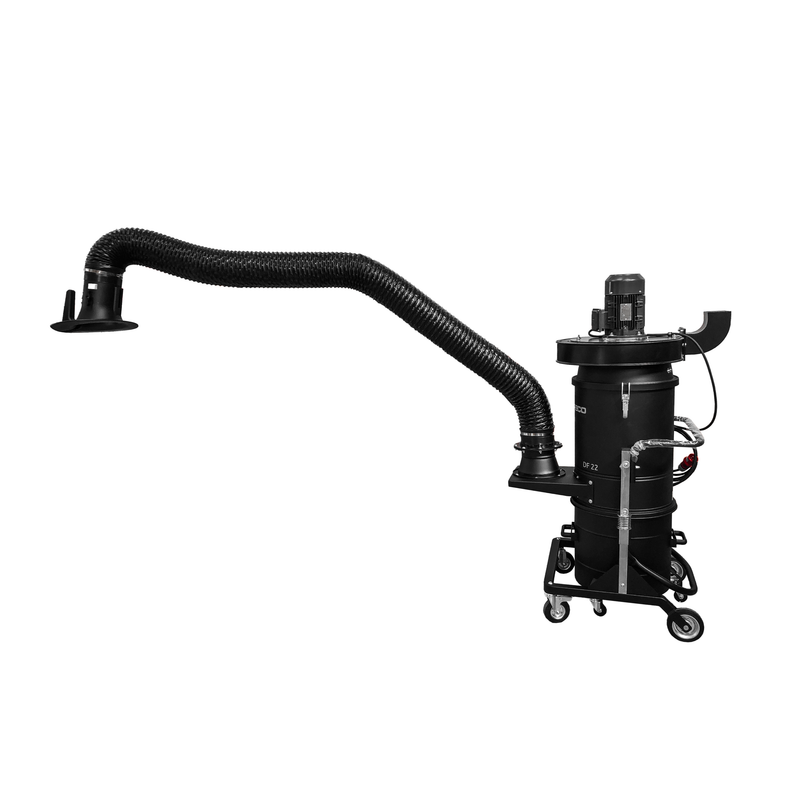

Depureco 26 Gal Bin Capacity 3 HP Powerful Dust Collectors DF 22
Product Description

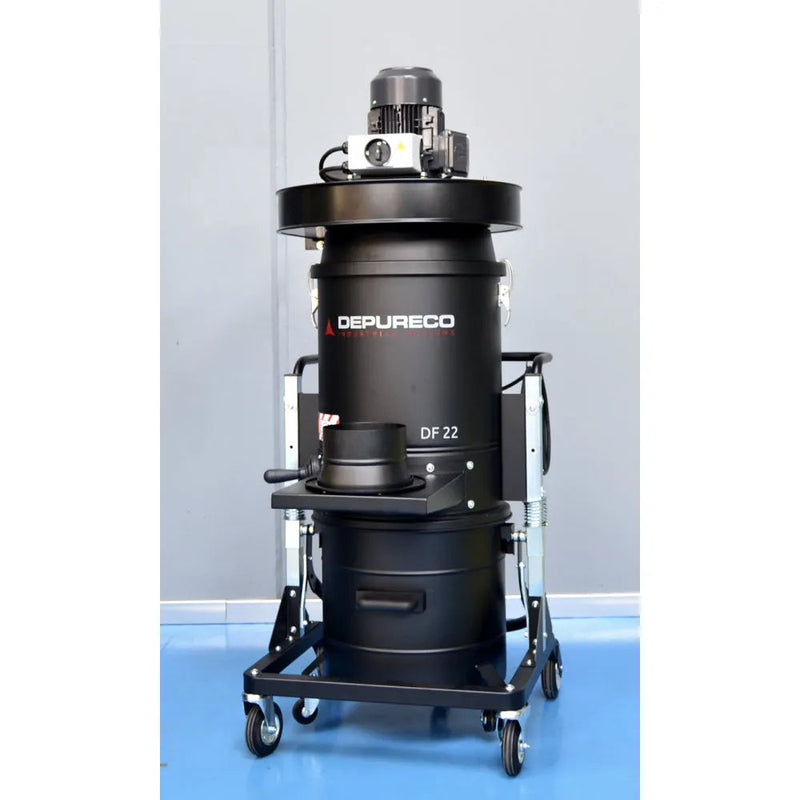

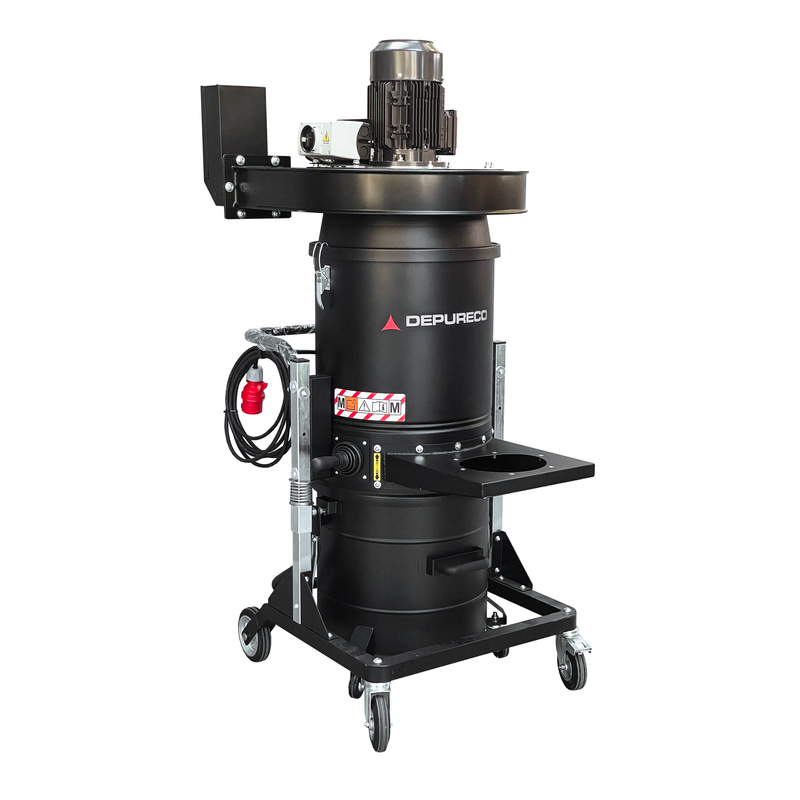

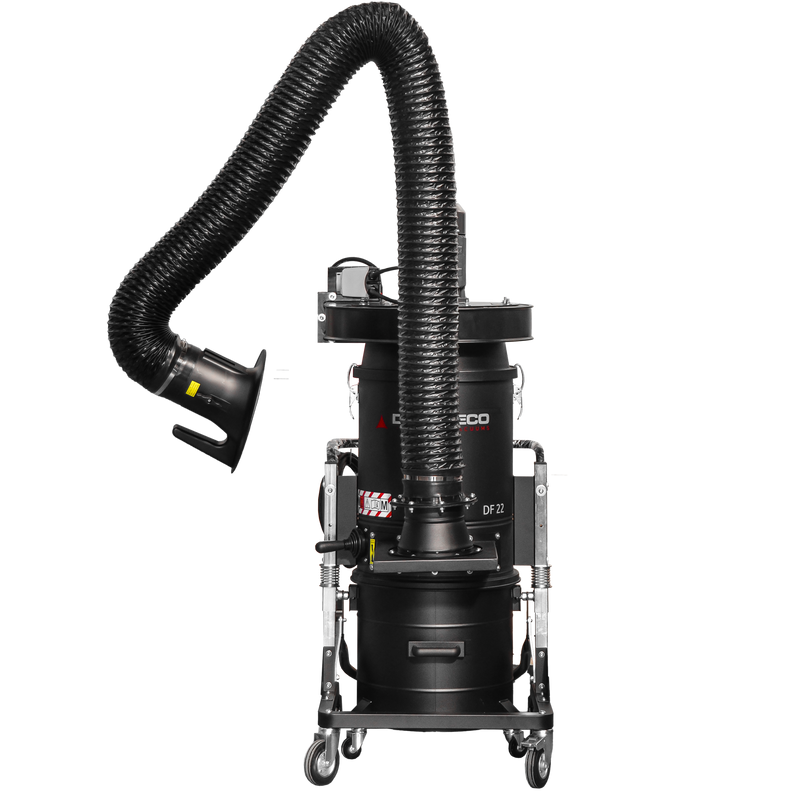

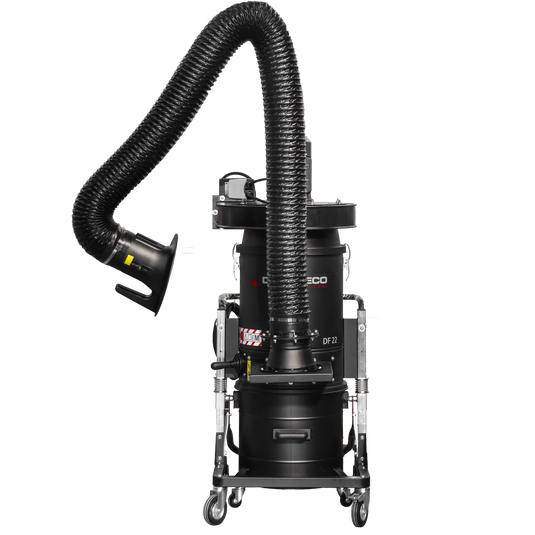

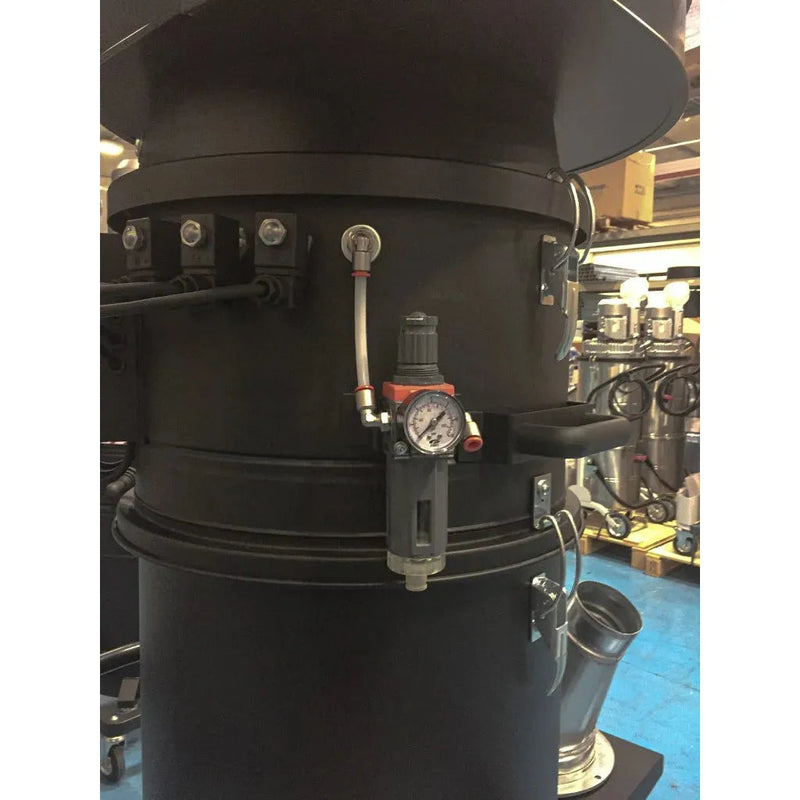

The DF 22 are portable industrial vacuums featuring a three-phase fan, specifically designed for extracting suspended dust or for connection to an aluminum and PVC cutting machine. They belong to the collection of Depureco Dust Collectors and are equipped with a highly efficient filtering surface that achieves an M Class filtration efficiency of 1 micron. As a standard feature, these industrial vacuums include a highly effective manual filter cleaning system. By utilizing a lever located outside the filter chamber, the operator can easily shake the filter, causing the dust to directly fall into the bin. Additionally, upon request, an automatic piston filter shaking system or jet pulse filter cleaning system can be installed.
Features

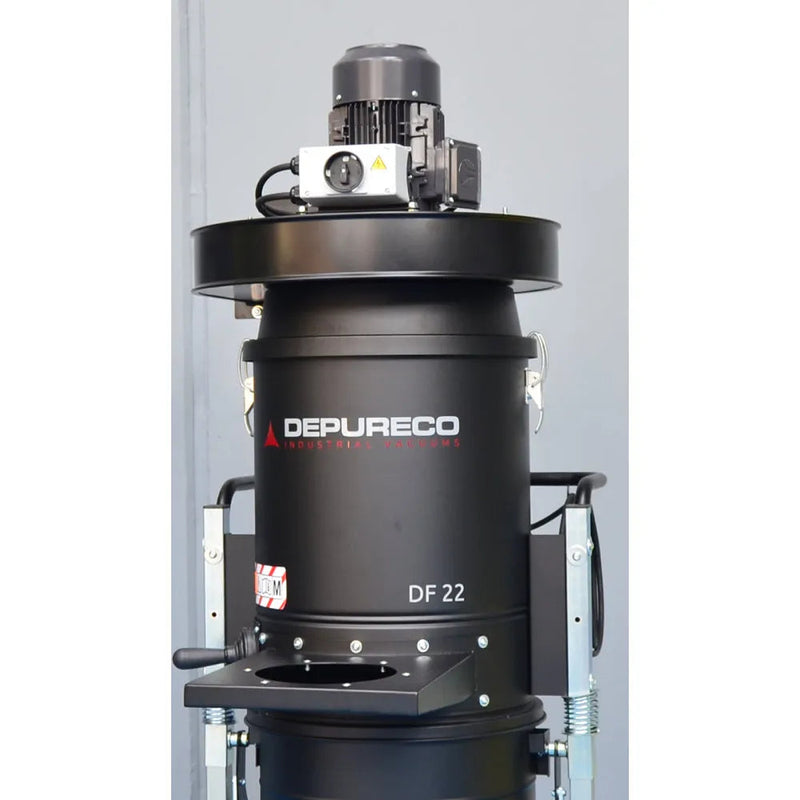

Suction Unit
The vacuum is created by a dedicated electric fan that ensures optimal airflow while maintaining a sufficient level of suction.
Filtering Element
Filtration is provided by a star-shaped polyester filter classified as M Class (BIA | EN 60335-2-69). This unique design allows air to pass through the filter even when it becomes dirty. The M Class classification ensures that particles as small as 1 micron are effectively trapped by the filter, offering protection to both the fan and the operator in the vicinity of the vacuum cleaner.

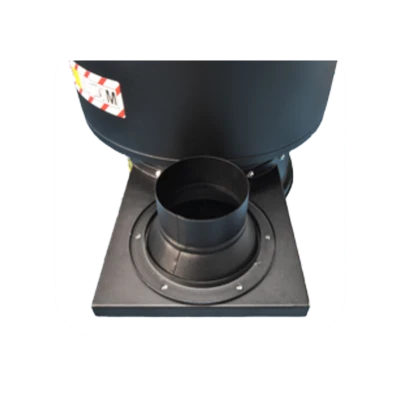

Inlet with Deflector
The specially designed inlet deflector directs the material towards the container with precision. Depending on specific needs, connection flanges or reduction flanges of various diameters can be easily attached to the deflector.

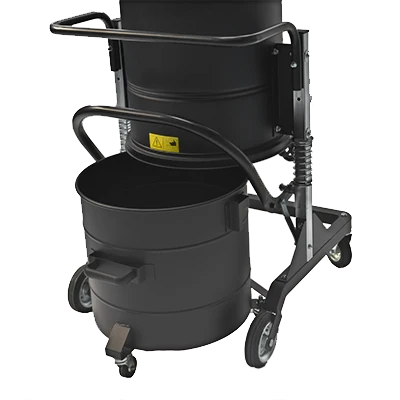

Collection Bin
The collected material is stored in a painted container that features a sturdy metal handle, allowing the bin to be easily detached from the machine. With the help of its four swiveling wheels, the bin can be effortlessly maneuvered and emptied. To ensure optimum stability during handling, each wheel is reinforced.
Specification
| Model | DF 22 |
| Motors | Type | Fan |
| Voltage | Frequency | 480 | 60 V|Hz |
| Maximum vacuum | 13.8 |13.8| 13.8 inH2O |
| Maximum air flow | 470 |589| 824 CFM |
| Noise level-(EN ISO 3744) | 73 dB(A) |
| Power | 3,45 ∣ 3∼ HP |
| IP | Insulation Class | 55 | F |
| Inlet | 4 | 4.70 | 6 Ø in |
Primary Filter
| Filter Type | Star |
| Class EN 60335-2-69 | M |
| Media | Polyester |
| Filter cleaning system | Manual |
| Surface area | 3800 in² |
Machine
| Dimensions | 25.98 X 31.50 in |
| Height | 64 in |
| Weight | 262 lb |
| Bin capacity | 26 gal |
