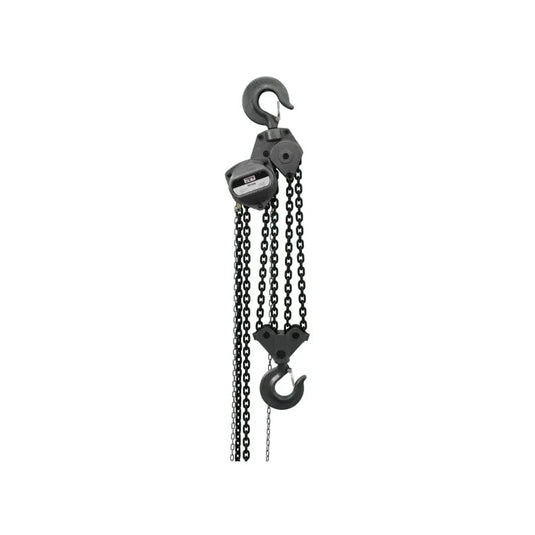

JET S90-1000-10 10 Ton 10' Lift Hand Chain Hoist JT9-101960
Product Description
JET® S90 Series Hand Chain Hoists were designed with all steel construction and ensure reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.
Features
- Grade 80 black oxide coated load chain for added durability
- Heat Treated Load Plates
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
- Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
- Needle bearings support the load sheave to increase efficiency and promote smooth operation
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
- The smaller body and lightweight design are ideal for confined areas and low headroom applications
- The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
Specifications
| Stock Number | JT9-101960 |
| Hand Chain To Lift Load 1 ft. | 357 |
| Capacity (Lbs.) | 22000 |
| Lift (Ft.) | 10 |
| Load Capacity (Tons) | 10 |
| Load Chain Dimensions dia/mm) | 10 x 30 |
| Model Number | S90-1000-10 |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | Lifetime |
| Weight (Lbs.) | 220 |
| Lbs. of Pull to Lift Capacity | 96 |
| Gross Weight | 216 |
| SAP Net weight | 198 |
| Headroom (In.) | 30 |
