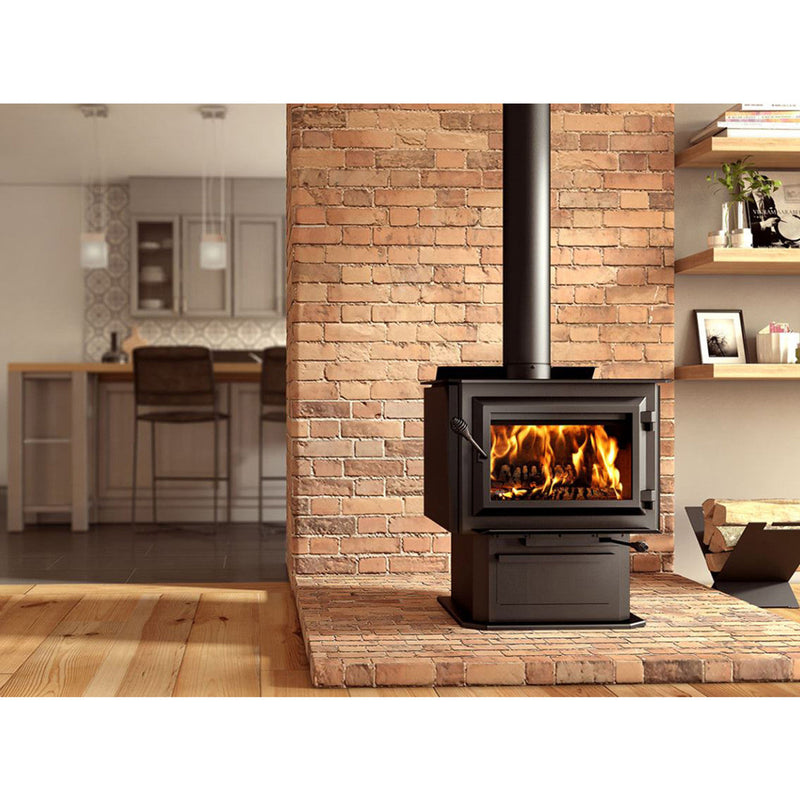

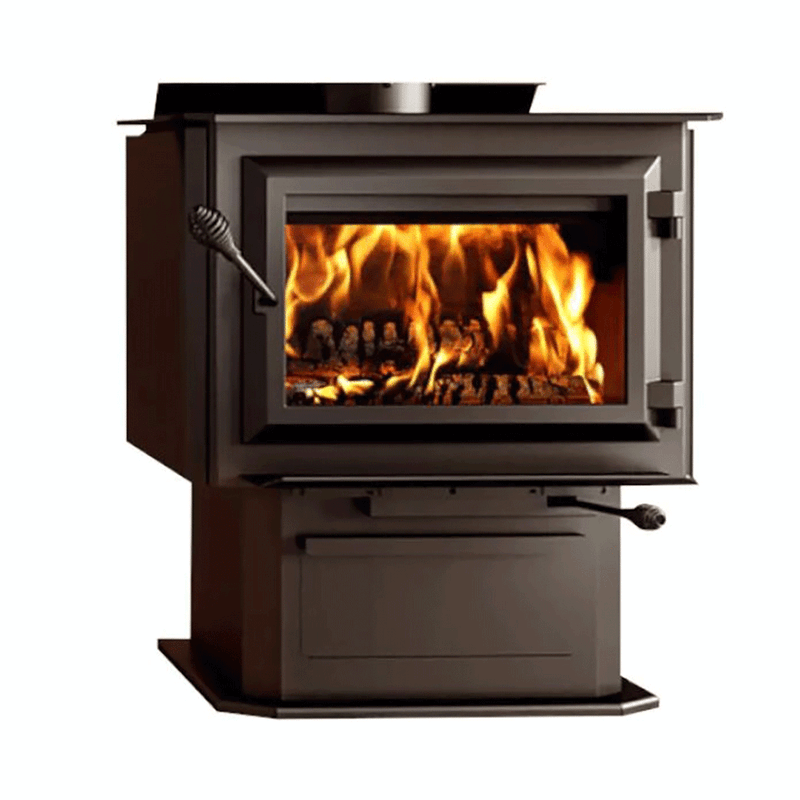

Ventis HES240 Wood Stove - Unit VB00016
Product Description
The Ventis HES240 large sized single cast iron door wood burning stove on pedestal is recommended for heating larger spaces from 500 - 2, 100 sq. ft. The firebox is lined with refractory bricks for better heat distribution with a fresh air intake allows for mobile home & alcove installation. The HES240 offers non-catalytic combustion technology and top heat deflector and side shields. This unit has a 8hr Maximum Burn Time, can hold 20" logs and is EPA 2020 approved.
30% Tax Credit Program
Feature
- 2.4 cu. ft. firebox
- Heating capacity 850 to 2, 100 sq. ft.
- Optimum efficiency : 77%
- Non-Catalytic Combustion Technology
- Top Heat Deflector and Side Shields
- Optimum efficiency : 77%
- Emissions: 1.54 g/h
- BTU/hr, seasoned cord wood: 75,000
- 2.4 cu. ft. firebox
- Heating capacity 850 to 2, 100 sq. ft.
- Optimum efficiency : 77%
- Non-Catalytic Combustion Technology
- Top Heat Deflector and Side Shields
- Optimum efficiency : 77%
- Emissions: 1.54 g/h
- BTU/hr, seasoned cord wood: 75,000
- Optional variable speed blower available for additional purchase
Appliance Performance
|
Fuel type |
Dry cordwood (16" recommended)
|
|
Recommended heating area |
500 - 2,100 ft² |
|
Overall firebox volume |
2.4 ft³ |
|
EPA loading volume |
2.02 ft³ |
|
Maximum burn time |
8 hours |
|
Maximum heat output-dry cordwood |
75,000 BTU/h |
|
Minimum overall heat output rate |
14,800 BTU/h (4.34 kW)
|
|
Maximum overall heat output rate |
28,600 BTU/h (8.38 kW)
|
|
Average efficiency-dry cordwood (HHV) |
69 % |
|
Average efficiency-dry cordwood (LHV) |
74 % |
|
Optimum efficiency |
77 % |
|
Optimum heat transfer efficiency |
75 % |
|
Average particulate emission rate |
1.54 g/h |
|
Average CO |
89.4 g/h |
- Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
- Optimum overall efficiency at a specific burn rate (LHV).
- This appliance is officially tested and certified by an independent agency.
- The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
- As measured per CSA B415.1-10 stack loss method.
- Higher Heating Value of the fuel.
- Lower Heating Value of the fuel.
- The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
- Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
- Carbon monoxyde.
General Features
|
Maximum log length |
20" |
|
Shipping weight |
375 lb (170 kg) |
|
Overall dimension (Width) |
26 3/4" |
|
Overall dimension (Height) |
32 1/8" |
|
Overall dimension (Depth) |
26 3/4" |
|
Alcove installation approved |
Yes |
|
Mobile home approved |
Yes, with fresh air intake
|
|
Premium quality blower included (CFM) |
Optional |
|
Certified according to applicable standards |
CAN/USA accredited laboratory
|
|
Combustion technology |
Non-catalytic |
|
Stainless-steel secondary-air system |
Yes |
|
Flue outlet diameter |
6" |
|
Recommended chimney diameter |
6" |
|
Type of chimney |
CAN/ULC S629, UL 103 HT (2100 °F)
|
|
Minimum chimney height |
12' |
|
Door type |
Single, glass with cast iron frame
|
|
Door opening size (Width) |
17 1/2" |
|
Door opening size (Height) |
9" |
|
Glass type |
Ceramic glass |
|
Glass surface - W x H |
16 7/8" x 10 1/4" |
|
Firebox size (Width) |
21" |
|
Firebox size (Height) |
11 7/8" |
|
Firebox size (Depth) |
17 1/8" |
|
Log positioning |
Loading over width
|
|
Firebox lined with refractory bricks |
Yes |
|
Baffle type |
High quality vermiculite
|
|
High-efficiency certified appliance |
Yes, EPA 2020 certified
|
|
Canadian Standard (emissions) |
CSA B415.1-10 |
|
USA Standard (emissions) |
EPA |
|
Canadian Standard (safety) |
ULC S627 |
|
USA Standard (safety) |
UL 1482, UL 737
|
|
Steel thickness-body |
3/16" |
|
Steel thickness-top |
5/16" |
Product Documents
Product Catalogue
Installation and User’s Manual
Safety & General Information
Fresh Air Kit Installation Instructions
Tax Credit Qualification and Summary
Appliance Dimensions
