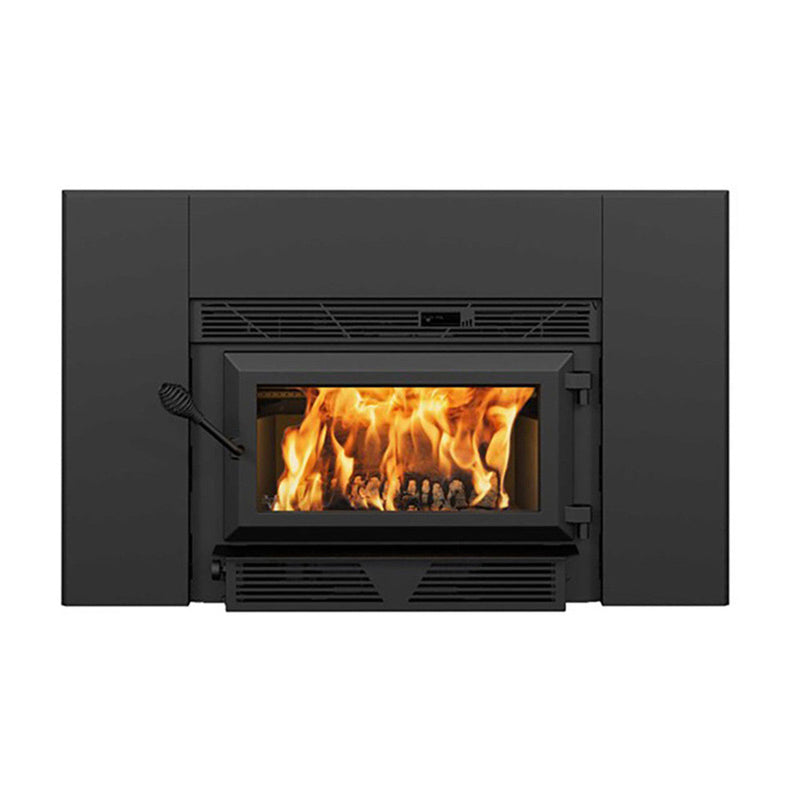

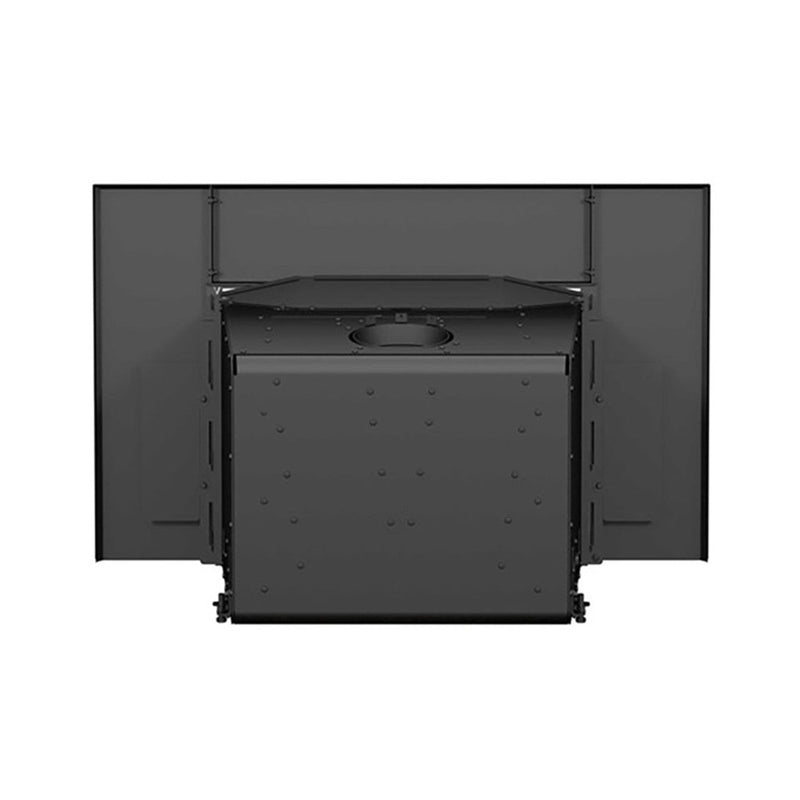

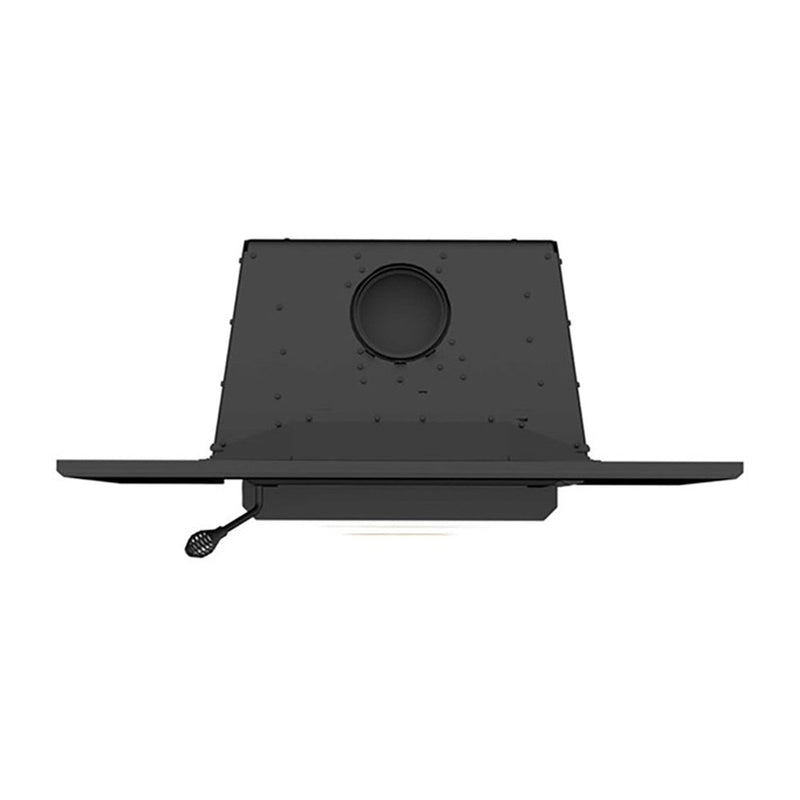

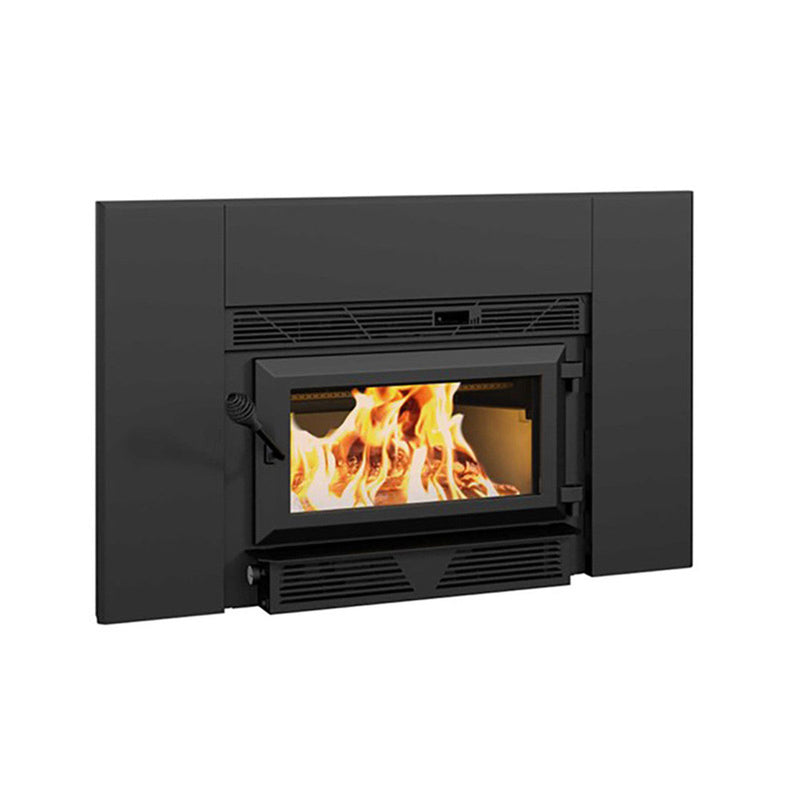

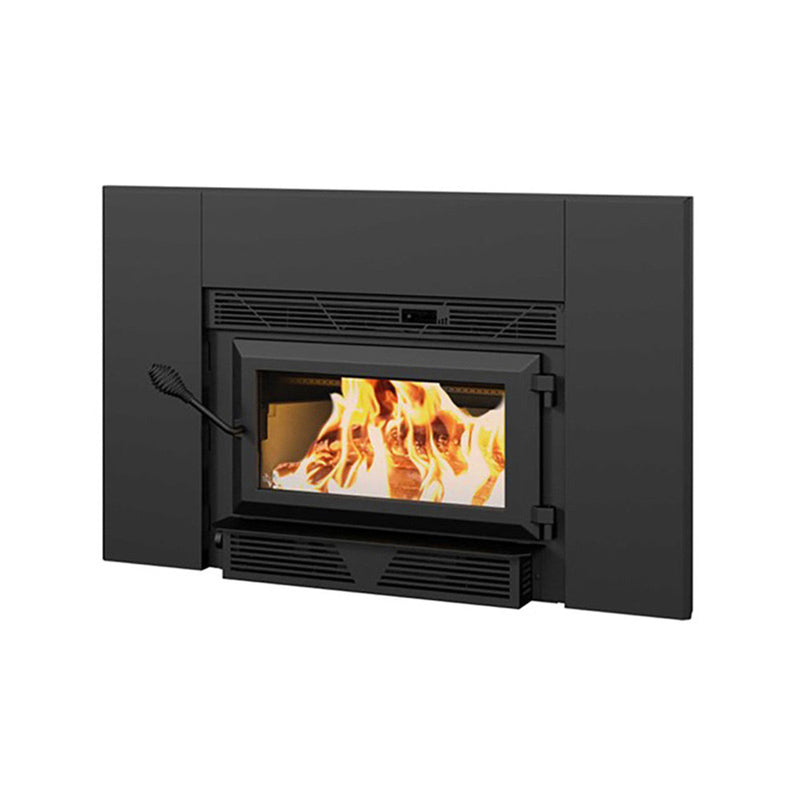

Ventis HEI90 28" Wood Fireplace Insert Direct Vent | VB00024

Ventis HEI90 Wood Fireplace Insert - VB00024

Product Description

Introducing the Ventis HEI90 Wood Fireplace Insert, where innovation meets compact design. Its tapered top allows it to effortlessly fit into smaller fireplaces, transforming any space into a warm and cozy haven. Equipped with a 90 CFM premium blower, this insert guarantees efficient heat distribution throughout your living area. Powered by non-catalytic combustion technology, the HEI90 boasts an impressive 7-hour maximum burn time and an optimum efficiency of 82%, ensuring sustained warmth and fuel savings. Its versatility is matched by convenience – accommodating logs up to 17 inches, flue size of 6 inches, and a minimum flue height of 12 ft.

30% Tax Credit Program

• Tax Credit Certification Document

Features

• Model VB00024
• Required minimum firebox opening: 25″ W x 19″ H x 15-1/2″ D
• Vermiculite baffles
• 82% overall optimum efficiency
• EPA rating: 1.5 g/h
• 45,000 BTU maximum with seasoned cord wood
• Recommended heating area: 250 – 1,200 sq. ft.
• 7-hour burn time
• High-efficiency EPA certified appliance
• Bottom louvers
• Firebox lined with refractory bricks
• Stainless-steel secondary-air system improves gas combustion
• 90 cfm blower included
• Maximum log length 17″, 16″ recommended
• Non-catalytic combustion
• 6″ flue diameter
• Firebox volume 1.1 cu. ft.
• Single cast iron door
• Ceramic glass with 18″ wide x 8-1/8″ high viewing area
• Unit dimensions: 27-7/8″ wide x 20-1/8″ high x 15-1/4″ deep
• Rigid fire screen optional
• Qualifies for tax credit

Technical Specifications

• Recommended Heating Area: Up to 2,700 sq. ft. Glass Viewing Area: 209 sq. inches Maximum Log Size: 22"
• 64% efficient based on an EPA-specified test method (CSA B 415-10 stack loss method). Actual efficiency will vary.

Dimension

• 21'' H x 28'' W x 20''L
• Item Weight: 287

Product Documents

Specification Sheet
Product Manual
