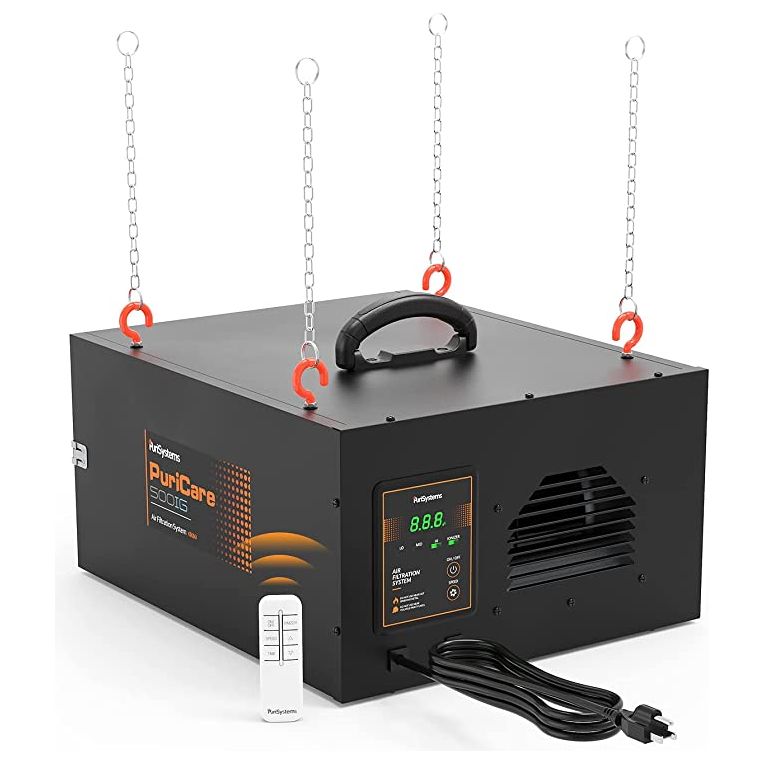

PuriCare Air Filtration System/Dust Collector Built-in Ionizer 500IG

PuriCare Air Filtration System/Dust Collector Built-in Ionizer 500IG

Product Descriptions

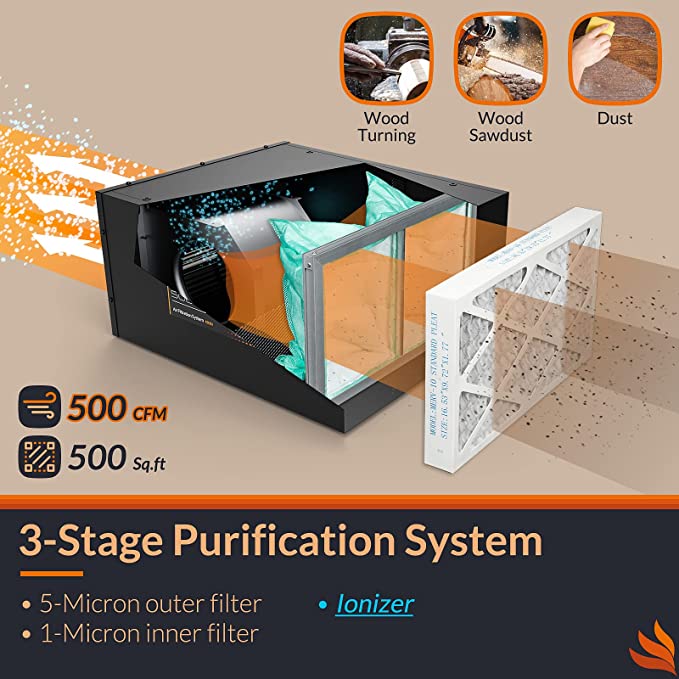

PuriCare 500IG Air filtration System compared to PuriCare 500, its unique double ionization technology produces equal amounts of positive and negative ions. Particles in the air are charged by ions, which cause the particles to aggregate and be captured by the filter. And the trace amounts of ozone produced during operation can neutralize harmful pollutants and odors. Even in a 500 sq. ft.carpenter's shop/DIY house,the device also works great.

Highlight: Built-in ion generator/Remote control with a built-in timer/Sheet metal spray shell/Automatic operation function

The Puricare 500IG has a 1/8 HP motor that operates at three adjustable speeds (i.e. 350, 450 or 500 CFM). Switching between these speeds is very convenient. In addition, the system's dual filters can effectively handle fine dust such as dust, sawdust, pet sawdust, and other particles as small as 1 micron. The lightweight design weighs only 25.5 pounds and features a clever snap-on design and eyebolts on both sides. It's easy to move and install to meet your unique, complex needs. PuriCare 500IG gives you the confidence to breathe cleaner, safer air.

【IMPORTANT】 Does not meet California air cleaner regulation requirements; cannot be shipped to California.

Features

• cETL Certified

• Sheet metal spray shell with strong corrosion and wear resistance, ensuring that it can withstand harsh environments

• 1/8HP powerful motor with special overload protection and strong airflow to avoid potential fires and explosion hazards

• Sturdy fan blades that reduce noise and increase airflow

• Noise below 61dBA

• Three speeds: 350,450 or 500CFM per minute

• One-micron filter and five-micron pre-filter that is easy to clean and replace

• Built-in ion generator

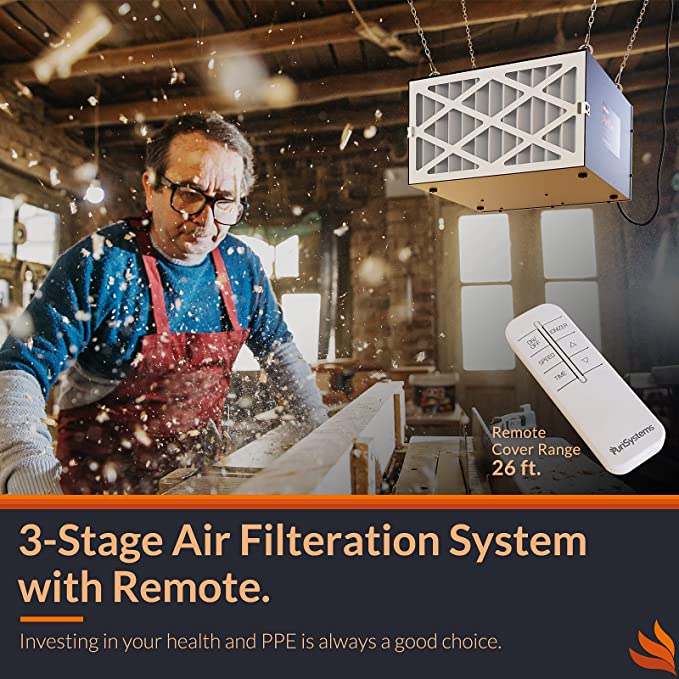

• RF remote control with a built-in timer (e.g. 1-12 hours), which works up to 26 feet

• Simple color bar shows the surrounding air quality

• With the working time timer, you can check the working time of the equipment and consider whether to keep it on

• Cleverly designed buckle handles on both sides, which make it easy to move and install

• Two simple top-fixing structures

• Rubber feet prevent the system from marking surfaces

• Automatic operation function with continuous operation at the highest wind speed by default (e.g. red/yellow/green)

Specifications

• Motor: 1/8 HP, 115 V/60 Hz, 1.0 A

• Air Flow: 350, 450, and 500 CFM

• Ideal For: 500 Sq. Ft.

• Noise: <61 dBA

• Outer Filter: 5 microns

• Inner Filter: 1 micron

• RF Remote Control

• Installation Hooks

• Setting Timer

• Cord: 5 ft

• Unit Dimensions (L×W×H): 20.1 x 17 x 11 in

• Unit Weight: 25.5 lbs

• Shipping Dimensions (L×W×H): 22.9 x 19.8 x 12.4 in

• Shipping Weight: 30.2 lbs

• Loading Quantity: 20': 308 Sets; 40': 644 Sets; 40'HQ: 736 Sets

Benefits

Adding a negative ion device to a woodworking dust collector is a concept not usually found in woodworking shops. The idea behind using negative ions (also called "anions") is to clean and freshen the air, and they are more commonly associated with air purifiers. The installation of such a device in a dust extraction system for woodworking offers the following advantages:

Improved dust collection - Negative ions increase the likelihood that particles in the air will clump or cluster together. If this is the case, larger clumped particles can be more easily captured by the dust collector.

Possible reduction of microbes - Some studies show that negative ions can reduce bacteria and viruses in the air. Although wood workshops are generally not a high risk for these pathogens, any additional reduction can be beneficial, especially in a closed environment.

Reduce odors - Negative ions that produce ozone can neutralize odors and reduce the level of harmful chemicals in the air. In woodworking shops, especially when certain paints, adhesives, or types of wood are used, strong odors can sometimes occur.

Maintain Lung Health - Inhaling wood dust has been linked to many diseases, such as dermatitis, asthma, various allergies, and cancer. However, simply having a dust collector in your workshop will not provide sufficient protection against this dire consequence. Air filtration systems designed for woodworking workshops can purify the air by capturing particles as small as 0.001 mm. Dust collectors cannot capture particles of this size. Thus, without using an air filter, you risk exposing yourself to life-threatening wood chips that are too minuscule to be caught by other purification systems.

Improve Your Mood - Dual-ion technology charges air particles with extra electrons, dispersing negative ions for deep cleaning. It also minimizes dust, dander, pollen and other allergens and pollutants. It will bring you a pleasant experience.

Clean Your Workshop Even When You Are Away - It makes sense to keep the PuriCare 500IG running after you've left the workshop, but the last thing you want is to leave the unit running all day without needlessly draining power while you're away. With the auto-off feature, you can choose between one and six-hour timers with the included RF remote to clean the air.

Easy Installation, Simple Operation, and Low Maintenance Cost - The PuriCare 500IG Filtration System is pre-assembled, so you solely need to determine where to place the unit. Be sure to check out our instruction manual. It's easy to operate and doesn't take much time to learn. When it comes to maintenance, the system doesn't require much attention other than occasional filter changes and weekly cleaning.

Applications

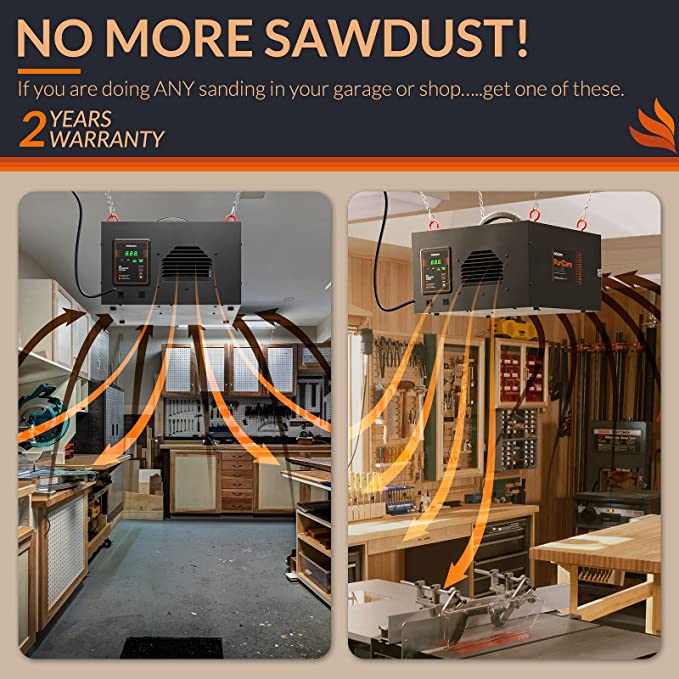

The PuriCare 500IG is designed to improve air quality in medium to large woodworking or metalworking workshops (i.e. saws, sanders, planers). It is specially strengthened in motor and air volume, which can absorb pollutants from machines, pads, tools, walls and windowsills more efficiently.
Additionally, its unique double ionization technology makes particles in the air charged by ions, causing them to aggregate and be captured by the filter. At the same time, active oxygen is generated to remove odors, volatile organic compounds (VOC) from tobacco, food, pets, paints, mold and mildew, and even carcinogenic formaldehyde emitted from furniture, laminate floors, and wooden cabinets. This makes it perform better than a HEPA filter.
The system also works well in similar environments such as renovations, warehouses, salons, print shops, and other enclosed spaces.

Proper Use and Maintenance

Safety Instructions

The power cord of the machine must be plugged into a grounded socket.
The power supply of the machine must not be higher than the specified power supply.
Do not use the machine after there is water inside the machine.
The machine should not be installed outdoors or in places that may be eroded by Rain Water to avoid electricity leakage and fire.
Do not run the machine without a filter installed
Refrain from moving the unit during operation
Do not place a shield within the 600mm around the air inlet and outlet of the product.
The machine has to be disconnected from power before it can operate internally.
If hooks are installed on the ceiling, the load-bearing capacity of the ceiling must be greater than 110 lbs.
If the dust collector is to be installed on the ceiling, the distance between the bottom of the dust collector and the ground must be greater than 7in.
Installation requires two people.

Maintenance and Cleaning

Under poor air quality, there will be a lot of dust in front of the control panel, which needs to be

cleaned up.

• Disconnect the power supply before cleaning.
• Open the cover next to the button on the machine control panel.
• Use a brush to dust the lid. Then put the lid on and plug it in.

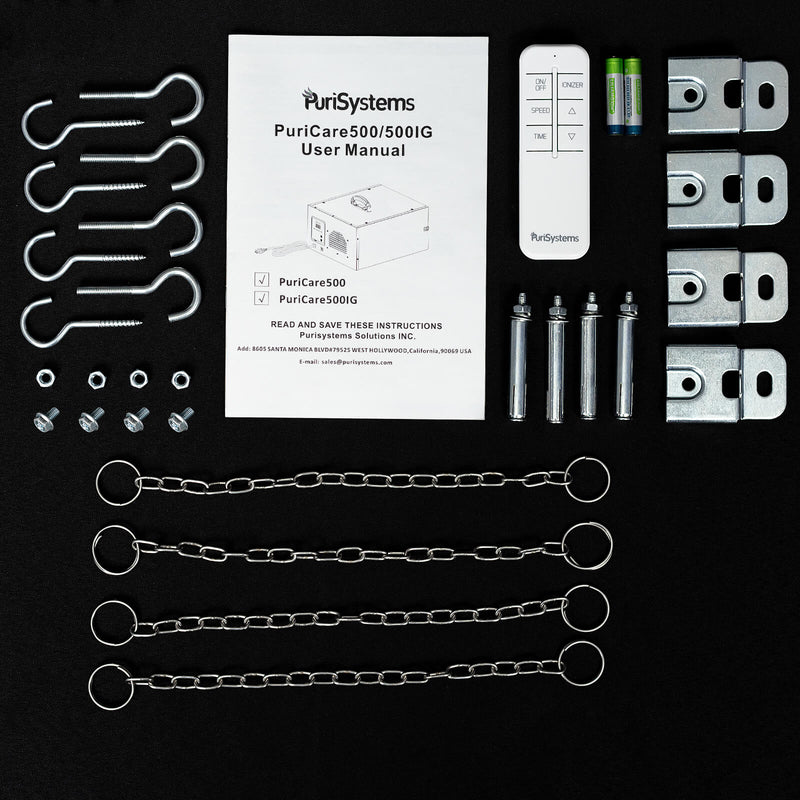

What is in Box

1 - PuriCare 500IG Air Filtration System
1 - Remote Control
4 - Chains
4 - Mounting Hangers
4 - Mounting Brackets
4 - Expansion Bolt
8 - Screw Hooks
2 - AAA Battery
1 - User Manual

Product Documents

Specification Sheet

User Guide

Data Plate

Wiring Diagram

Part List
