Napoleon 29" Oakville 3 Direct Vent Gas Fireplace Insert GDI3N-1

Napoleon 29" Oakville 3 Direct Vent Gas Fireplace Insert GDI3N-1

Product Description

The Oakville^™ Series Gas Inserts feature a robust "H" style burner which provides a brilliant display of flames throughout the firebox. Designed with ease of installation in mind, these inserts go in quickly and smoothly. A multitude of designer accessories offer thousands of different styled combinations. A clean face design and large viewing area make the Oakville^™ Series the aesthetic choice while the performance and reliability make them the only choice when it comes to an insert!

Features

• UP TO 24,500 BTU’S
• HIGH PERFORMANCE “H” STYLE BURNER PROVIDES
• COMPLETE FIREBOX WIDTH FLAME DISPLAY
• CLEAN FACE DESIGN AND FLUSH FINISH ACCESSORIES
• MIN. FIREPLACE OPENING - 21" H X 29" W X 14 3/8" D
• Full view design with a massive 340 sq. in. viewing area
• Premium clean face safety barrier maximizes viewing area
• Directional baffles increase air flow for maximum blower efficiency
• Wide range of media kits, brick panels and porcelain panels available

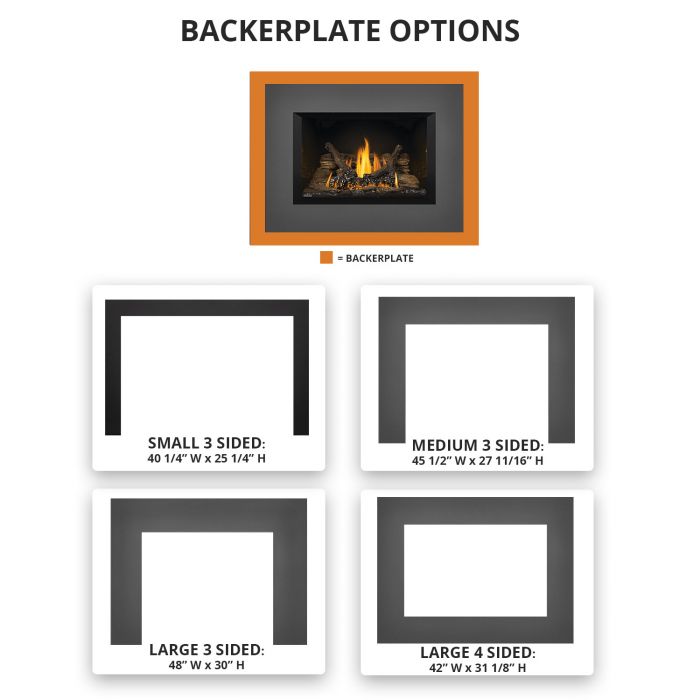

• Clean contemporary faceplates and backerplates available
• Superior heat circulating blower available
• Riser Box and Cast Iron Surround available
• 45’ vent kit available

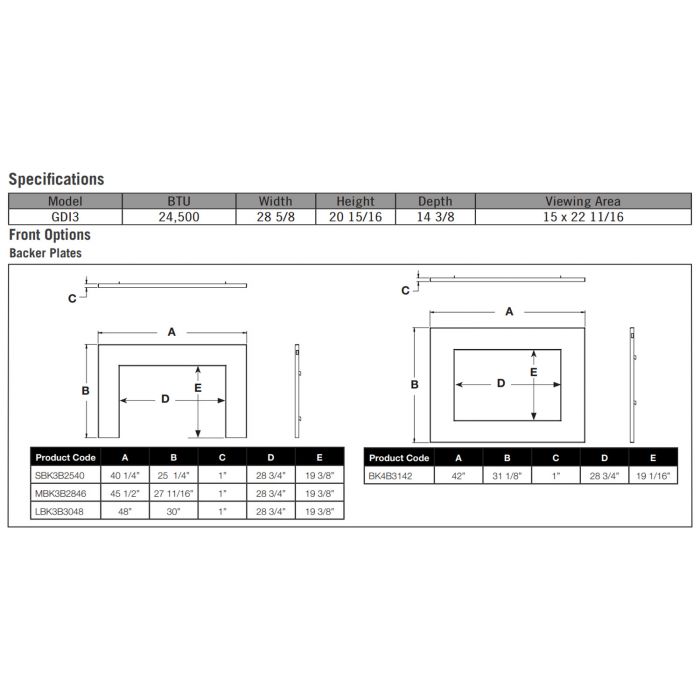

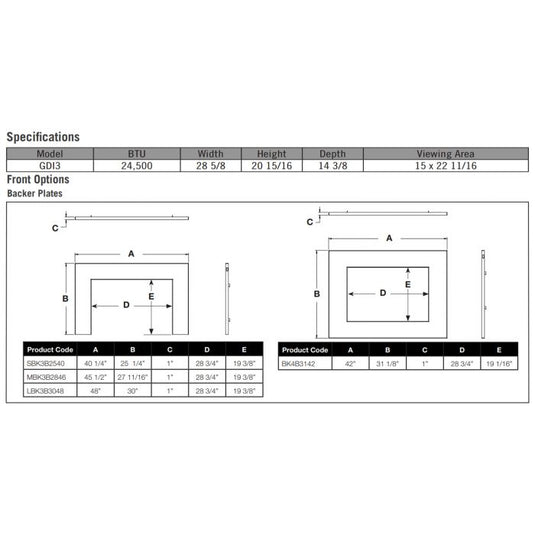

Specification

• Fuel Type
• Natural Gas
• Vent Type Direct Vent
• Vent Size 3 x 3
• Ignition Type Millivolt / Electronic
• Installation Type Insert
• Vent Inner Diameter 3 Inches
• Vent Outer Diameter 3 Inches
• Max / Min (BTU/HR) - Natural Gas 24,500 / 13,475
• Max / Min (BTU/HR) - Propane 24,500 / 13,475

Dimension

• 20.94'' H x 28.63'' W x 18.31'' D

Product Document

Brochure
Features
Installer
Instructions
Specification Sheet
