England's Stove Works Cub Camp Stove
Product Description

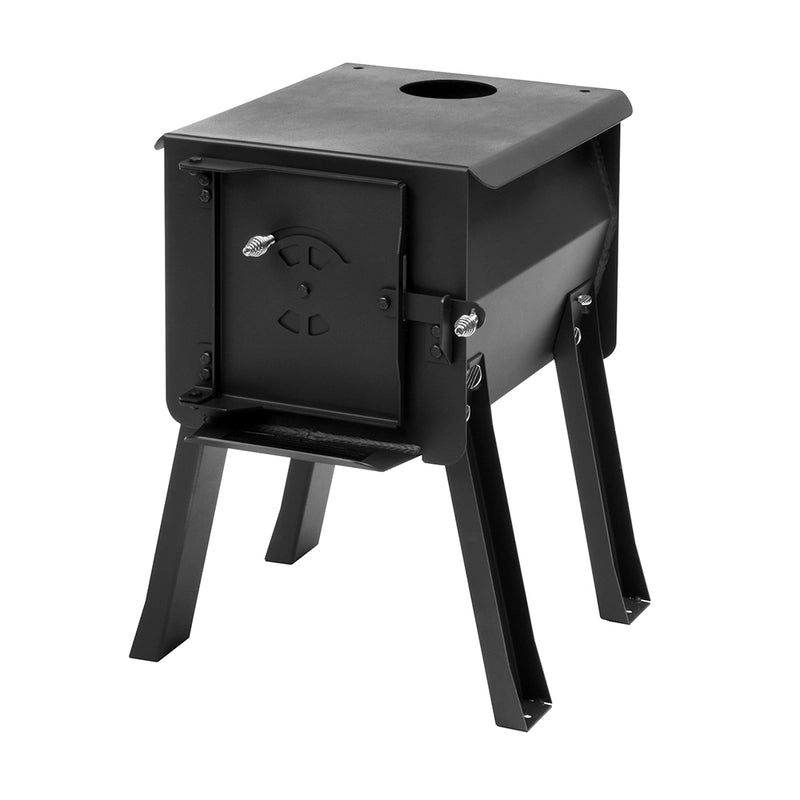

Constructed of welded, heavy-duty 12-gauge steel for longevity, these stoves are sized just right to remain portable yet very useful, whatever your needs may be-whether camping in a wall tent, ice fishing house, or just out in the Great Outdoors. Removable legs fit inside the stove body, and the stove's top edges are bent to double as handy carrying handles.
The 4” diameter pipe outlet is offset to provide maximum cooking space, and the top of the stove gets more than hot enough for cooking- this model can reach 600° F. The Cub is also large enough to heat wall tents up to 12' x 14'.
NOTE: NOT for use in homes. Only for use outdoors.
- HexaTech™ Hexagonal firebox design provides long burn times and even heat distribution

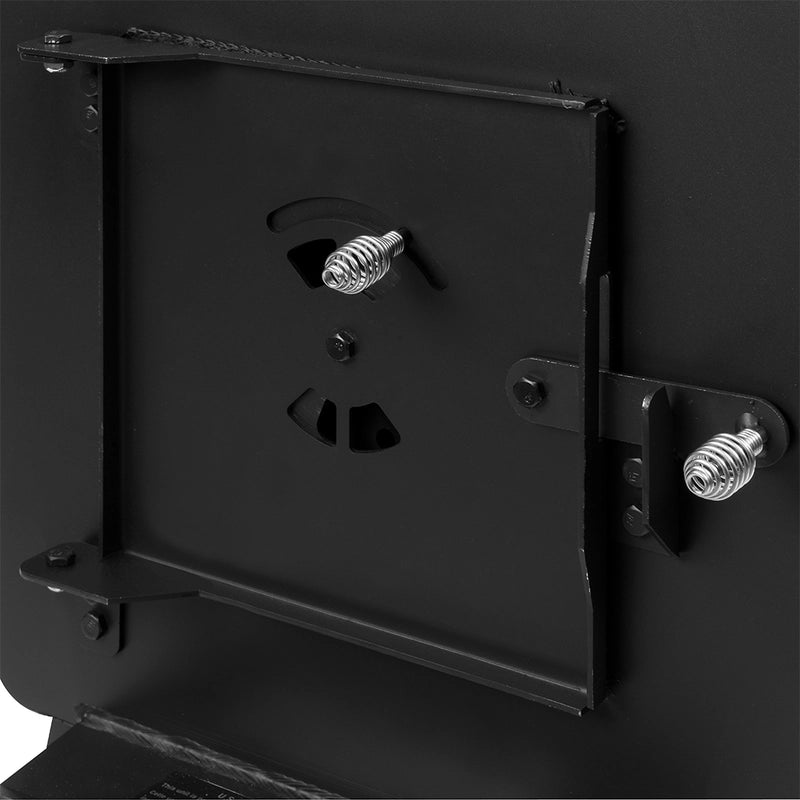

- Circular door damper and in-door air redirect for easy start-ups and precise temperature control

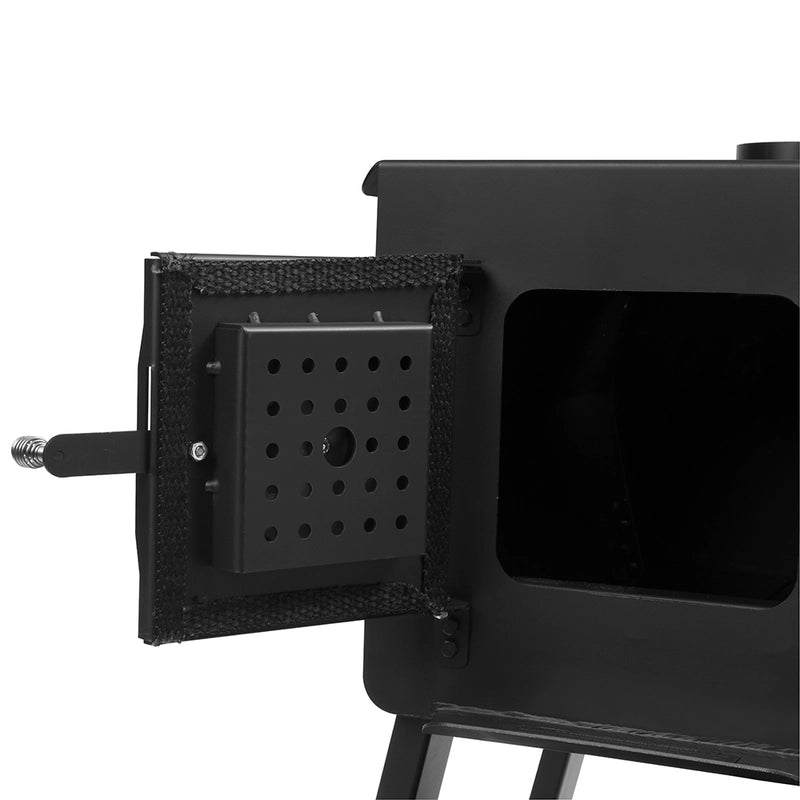

- High temp. fiberglass door gasket is a unique feature that gives more efficient, longer-lasting burns
- Included spring handles keep the door latch and damper controls cool to the touch
Specifications
|
Fuel type |
Dry cordwood |
|
Overall firebox volume |
1 ft³ |
|
Recommended chimney diameter |
4" |
|
Flue outlet diameter |
4" |
|
Firebox size (Height) |
11" |
|
Firebox size (Width) |
12" |
|
Firebox size (Depth) |
15 1/2" |
|
Overall dimension (Height) |
21 3/4" |
|
Overall dimension (Width) |
14 1/2" |
|
Overall dimension (Depth) |
19 1/2" |
|
Door opening size (Height) |
7 1/4" |
|
Door opening size (Width) |
6 3/4" |
|
Distance-center of the flue outlet to back unit |
3 1/2" |
|
Distance-center of the flue outlet to side unit |
7" |
|
Steel thickness-body |
12 Ga |
|
Steel thickness-top |
12 Ga |
|
Warranty |
Limited 1 year to carbon steel and welds of firebox
|
|
Maximum log length |
14 1/2" |
|
Mobile home approved |
No |
|
Canadian Standard (safety) |
ULC S627 |
|
Shipping weight |
45 lb (20 kg) |
|
Log positioning |
Loading over depth |
|
Door type |
Steel |
Clearances
|
CLEARANCE |
SINGLE WALL PIPE | DOUBLE WALL PIPE |
|
Back wall |
48" | 48" |
|
Corner |
48" | 48" |
|
Side wall |
48" | 48" |
|
Base of the unit to ceiling |
77 1/2" | 77 1/2" |
