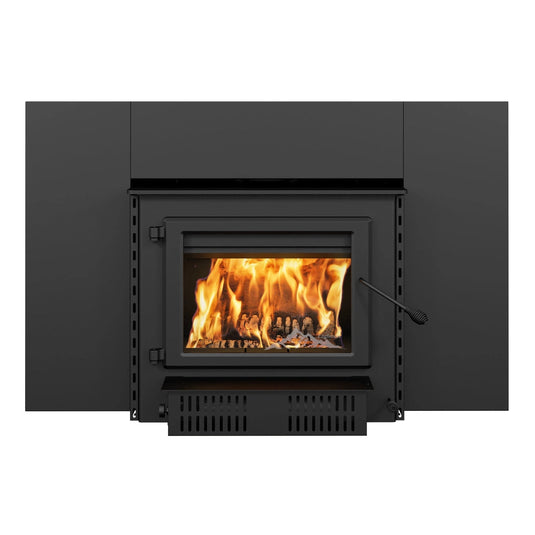

England's Stove Work Blue Ridge 500-I Wood Stove ESW0014
Product Description
- High efficiency 3.5 ft³ firebox
- Up to 10 hours burn time
- Spring faceplate adjustment system which easily adapts to any type of hearth
- Steel top reinforced with a stainless steel heat shield
- Cast iron door and ceramic glass
- EPA certified
- Proudly made in USA
- Non-catalytic combustion system
- Qualifies for the 30% US tax credit
- Included: 32" x 50" faceplate, air intake damper and 144 CFM blower with thermodisc
Appliance performance
|
Fuel type |
Dry cordwood (16" recommended) |
|
Recommended heating area |
1,000 - 2,700 ft² |
|
Overall firebox volume |
3.5 ft³ |
|
EPA loading volume |
2.88 ft³ |
|
Maximum burn time |
10 h |
|
Maximum heat output-dry cordwood |
110,000 BTU/h (32.2 kW) |
|
Minimum overall heat output rate |
17,200 BTU/h (5.0 kW) |
|
Maximum overall heat output rate |
57,800 BTU/h (16.9 kW) |
|
Average overall efficiency-dry cordwood (HHV) |
71 % |
|
Average overall efficiency-dry cordwood (LHV |
76 % |
|
Optimum efficiency |
77 % |
|
Optimum heat transfer efficiency |
75 % |
|
Average particulate emission rate |
1.6 g/h |
|
Average CO |
73 g/h |
General Features
|
Mobile home approved |
No |
|
Premium quality blower included (CFM) |
144 |
|
Certified according to applicable standards |
CAN/USA accredited laboratory |
|
Combustion technology |
Non-catalytic |
|
Stainless-steel secondary-air system |
Yes |
|
Flue outlet diameter |
6" |
|
Distance-center of the flue outlet to back unit |
7 1/8" |
|
Distance-center of the flue outlet to side unit |
14 3/8" |
|
Recommended chimney diameter |
6" |
|
Type of chimney |
Liner ULC-S635, CAN/ULC-S640, UL 1777
|
|
Minimum chimney height |
12' |
|
Overall dimension (Width) |
50" |
|
Overall dimension (Height) |
32" |
|
Overall dimension (Depth) |
28 7/8" |
|
Door type |
Single, glass with cast iron frame |
|
Door opening size (Width) |
19" |
|
Door opening size (Height) |
10 5/8" |
|
Glass type |
Ceramic glass |
|
Glass surface - W x H |
16 5/8" x 11 3/4" |
|
Steel thickness-body |
3/16" |
|
Steel thickness-top |
3/8" |
|
Firebox size (Width) |
22 7/8" |
|
Firebox size (Height) |
13" |
|
Firebox size (Depth) |
20 1/8" |
|
Maximum log length |
22" oriented East-West |
|
Log positioning |
Loading over width and over depth |
|
Firebox lined with refractory bricks |
Yes |
|
Baffle type |
High quality vermiculite |
|
Minimum fireplace opening (Width) |
31" |
|
Minimum fireplace opening (Height) |
26 1/4" |
|
Minimum fireplace opening (Depth) |
18 3/8" |
|
High-efficiency certified appliance |
Yes, EPA 2020 approved |
|
Canadian Standard (emissions) |
CSA B415.1-10 |
|
USA Standard (emissions) |
EPA |
|
Canadian Standard (safety) |
ULC S628 |
|
USA Standard (safety) |
UL 1482, UL 737 |
|
Warranty |
Limited 5 years |
|
Shipping weight |
520 lb (236 kg) |
Clearances
|
CLEARANCE |
SINGLE WALL PIPE | DOUBLE WALL PIPE |
|
Base of the unit to ceiling |
84" |
Product Documents
Wood insert manual | Safety notifications & general information
Installation & Operation Requirements
