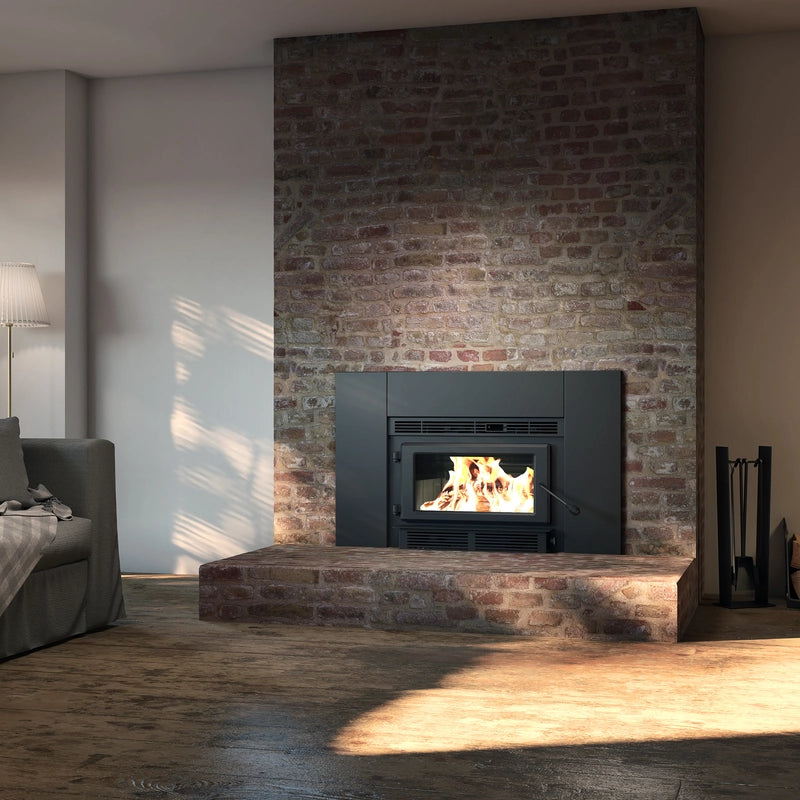

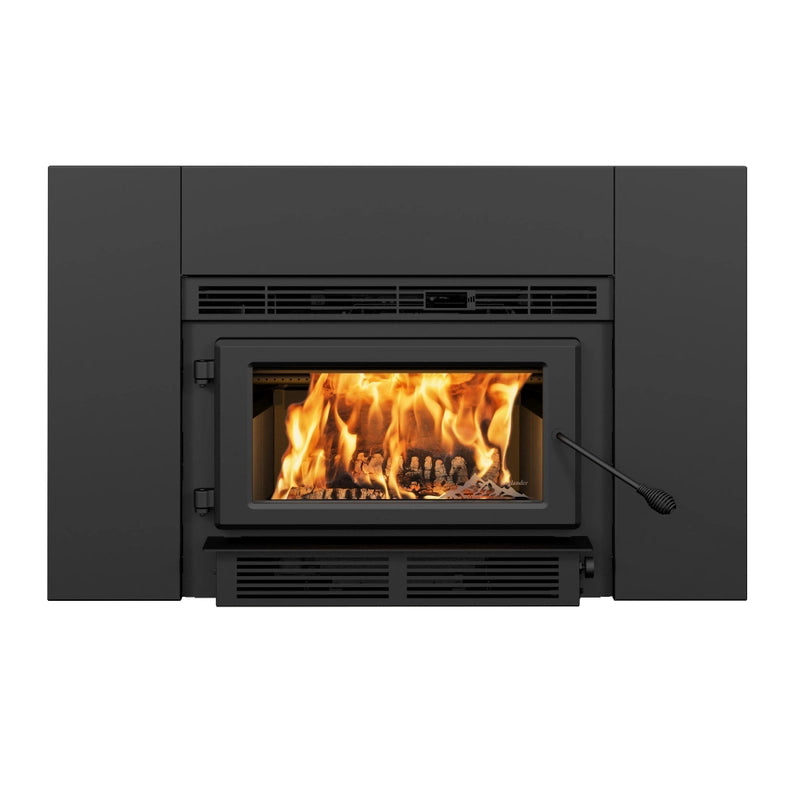

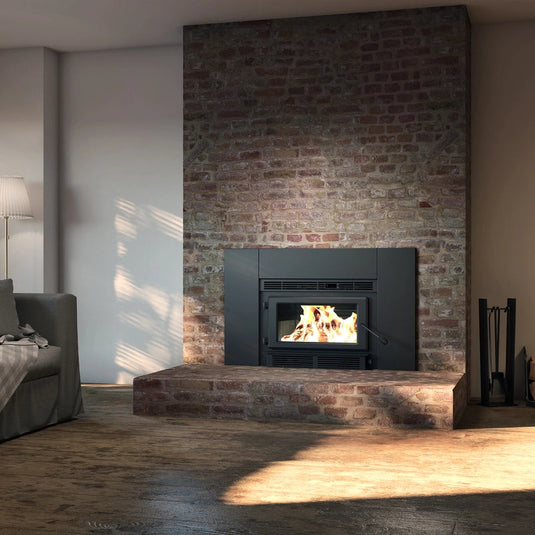

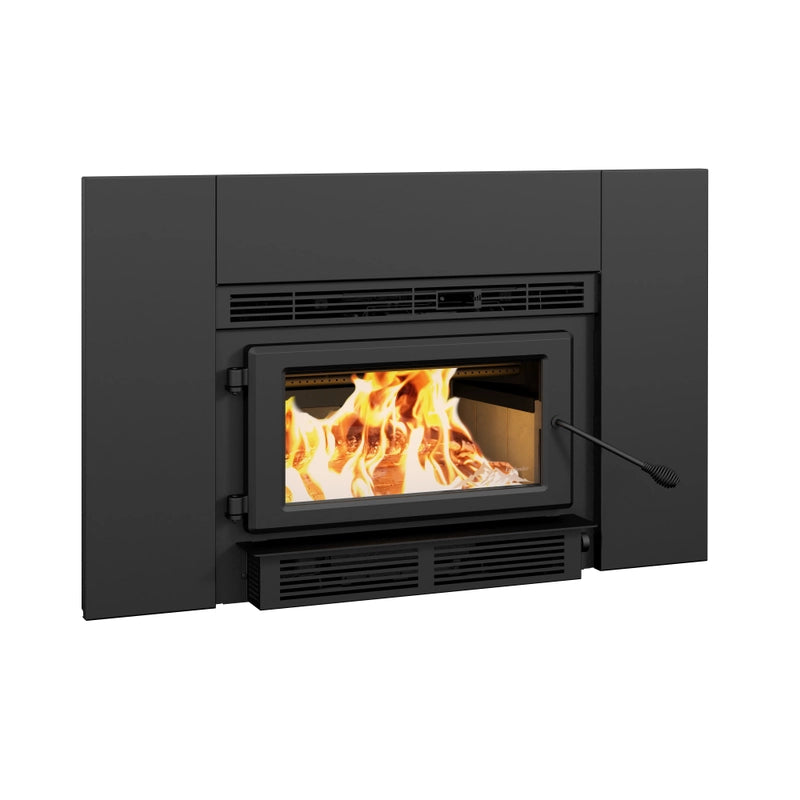

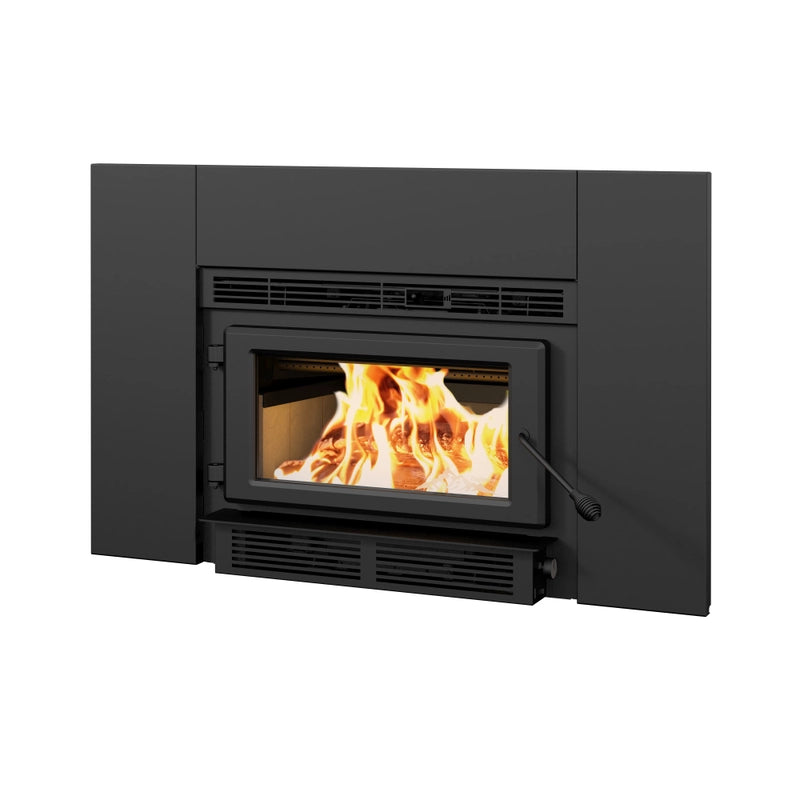

England's Stove Work Blue Ridge 150-I Fireplace Insert ESW0006
Product Description
- High efficiency 1.1 ft³ firebox
- Up to 7 hours burn time
- Lightweight steel faceplate with hooks that snap onto the front of the unit
- Steel top reinforced with a stainless steel heat shield
- Cast iron door and ceramic glass
- EPA certified
- Proudly made in USA
- Non-catalytic combustion system
- Qualifies for the 30% US tax credit
- Included: 26" x 42" faceplate, air intake damper and 90 CFM blower with thermodisc
Appliance performance
|
Fuel type |
Dry cordwood |
|
Recommended heating area |
250 - 1,200 ft² |
|
Overall firebox volume |
1.1 ft³ |
|
EPA loading volume |
1.03 ft³ |
|
Maximum burn time |
7 h |
|
Maximum heat output-dry cordwood |
45,000 BTU/h |
|
Minimum overall heat output rate |
8,471 BTU/h (2.48 kW) |
|
Maximum overall heat output rate |
31,700 BTU/h (9.29 kW) |
|
Average overall efficiency-dry cordwood (HHV |
75% |
|
Average overall efficiency-dry cordwood (LHV |
80% |
|
Optimum efficiency |
82% |
|
Optimum heat transfer efficiency |
78% |
|
Average particulate emission rate |
1.5 g/h |
|
Average CO |
34 g/h |
General Features
|
Mobile home approved |
No |
|
Premium quality blower included (CFM) |
90 CFM included |
|
Certified according to applicable standards |
CAN/USA accredited laboratory |
|
Combustion technology |
Non-catalytic |
|
Stainless-steel secondary-air system |
Yes |
|
Flue outlet diameter |
6" |
|
Distance-center of the flue outlet to back unit |
5" |
|
Distance-center of the flue outlet to side unit |
10 3/8" |
|
Recommended chimney diameter |
6" |
|
Type of chimney |
ULC-S635, CAN/ULC-S640, UL 1777 |
|
Minimum chimney height |
12" |
|
Overall dimension (Width) |
27 7/8" |
|
Overall dimension (Height) |
20 1/8" |
|
Overall dimension (Depth) |
21 7/8" |
|
Door type |
Single, glass with cast iron frame |
|
Door opening size (Width) |
18 1/4" |
|
Door opening size (Height) |
7 7/8" |
|
Glass type |
Ceramic glass |
|
Glass surface - W x H |
17 3/8" x 8 1/8" |
|
Steel thickness-body |
3/16" |
|
Steel thickness-top |
3/16" |
|
Firebox size (Width) |
16 3/8" |
|
Firebox size (Height) |
8 3/4" |
|
Firebox size (Depth) |
12 3/8" |
|
Maximum log length |
17" (16" recommended) |
|
Log positioning |
Loading over width |
|
Firebox lined with refractory bricks |
Yes |
|
Baffle type |
Vermiculite |
|
Minimum fireplace opening (Width) |
25" |
|
Minimum fireplace opening (Height) |
19" |
|
Minimum fireplace opening (Depth) |
15 1/2" |
|
High-efficiency certified appliance |
Yes, EPA 2020 approved |
|
Canadian Standard (emissions) |
CSA B415.1-10 |
|
USA Standard (emissions) |
EPA |
|
Canadian Standard (safety) |
ULC S628 |
|
USA Standard (safety) |
UL 1482, UL 737 |
|
Warranty |
Limited 5 years |
|
Shipping weight |
295 lb (134 kg) |
|
Minimum fireplace opening (Height at the back) |
17 1/4" |
|
Minimum fireplace opening (Width at the back) |
21 1/2" |
Clearances
|
CLEARANCE |
SINGLE WALL PIPE | DOUBLE WALL PIPE |
|
Base of the unit to ceiling |
16" |
72" |
Product Documents
Wood insert manual | Safety notifications & general information
