Drolet Escape 1800-I Wood Insert with Trio 35'' DB03128K
Product Description
Ideal for heating up to 2,100 ft², the Escape 1800 is the ultimate versatile wood insert! With only 1.54 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. The Escape 1800 is the perfect choice to update your masonry fireplace and make it efficient!

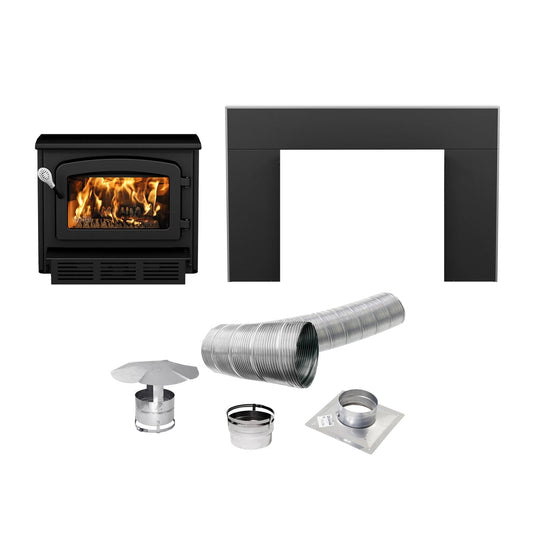

Included: 6" liner kit (35' Vortex flexible stainless steel liner, connector, 13" x 13" top plate, chimney cap with no screen), 32" x 50" faceplate with brushed nickel trim, blower, ceramic glass, ash lip, air damper
- Burn time up to 8 hours
- Up to 20" logs
- 2.4 ft³ firebox
- Robust 5/16" steel reinforced with a stainless steel heat shield
- EPA certified
- Proudly made in Canada
- Limited lifetime warranty
- This model qualifies for the US tax credit
Any installation must be done according to the data and drawings detailed in the owner’s manual.
Appliance performance
|
Fuel type |
Dry cordwood (16" recommended) |
|
Recommended heating area |
500 - 2,100 ft² |
|
Overall firebox volume |
2.4 ft³ |
|
EPA loading volume |
1.95 ft³ |
|
Maximum burn time |
8 h |
|
Maximum heat output-dry cordwood |
75,000 BTU/h (22.0 kW) |
|
Minimum overall heat output rate |
14,200 BTU/h (4.16 kW) |
|
Maximum overall heat output rate |
44,500 BTU/h (13.04 kW) |
|
Average overall efficiency-dry cordwood (HHV) |
72 % |
|
Average overall efficiency-dry cordwood (LHV) |
77 % |
|
Optimum efficiency |
79 % |
|
Optimum heat transfer efficiency |
76 % |
|
Average particulate emission rate |
2.3 g/h |
|
Average CO |
69 g/h |
General features
|
Premium quality blower included (CFM) |
144 PCM inclus |
|
Certified according to applicable standards |
By an accredited laboratory (CAN/USA) |
|
Combustion technology |
Non-catalytic |
|
Stainless-steel secondary-air system |
Yes |
|
Flue outlet diameter |
6" |
|
Distance-center of the flue outlet to back unit |
6 7/8" |
|
Distance-center of the flue outlet to side unit |
13 1/2" |
|
Recommended chimney diameter |
6" |
|
Type of chimney |
Liner - ULC-S635, CAN/ULC-S640, UL1777
|
|
Minimum chimney height |
12' |
|
Overall dimension (Width) |
28 3/8" |
|
Overall dimension (Height) |
23 1/8" |
|
Overall dimension (Depth) |
26 3/8" |
|
Door type |
Single, glass with cast iron frame |
|
Door opening size (Width) |
17 1/2" |
|
Door opening size (Height) |
9" |
|
Glass type |
Ceramic glass |
|
Glass surface - W x H |
16" x 9 1/4" |
|
Steel thickness-body |
3/16" |
|
Steel thickness-top |
5/16" |
|
Firebox size (Width) |
21" |
|
Firebox size (Height) |
11 7/8" |
|
Firebox size (Depth) |
16 1/2" |
|
Maximum log length |
20" |
|
Log positioning |
Loading over width |
|
Firebox lined with refractory bricks |
Yes |
|
Baffle type |
High quality vermiculite |
|
Minimum fireplace opening (Width) |
28 7/8" |
|
Minimum fireplace opening (Height) |
23 3/8" |
|
Minimum fireplace opening (Depth) |
15 3/4" |
|
High-efficiency certified appliance |
Yes, EPA 2020 approved |
|
Canadian Standard (emissions) |
CSA B415.1-10 |
|
USA Standard (emissions) |
EPA / ASTM WK47329 |
|
Canadian Standard (safety) |
ULC S628 |
|
USA Standard (safety) |
UL 1482, UL 737 |
|
Warranty |
Limited lifetime |
|
Shipping weight |
500 lb (227 kg) |
|
Approved as add-on to an existing furnace |
No |
Clearances
|
CLEARANCE |
SINGLE WALL PIPE | DOUBLE WALL PIPE |
|
Base of the unit to ceiling |
16" | 84" |
