Attic Storage Lift 400 lbs - Attic Lift 1400 w/ Remote by Auxx-Lift

Attic Storage Lift 400 lbs - Attic Lift 1400 w/ Remote by Auxx-Lift

Installation & Specification Documents (PDF)

• Installation Guide
• Owner Manual
• CAD Drawing (DWG)

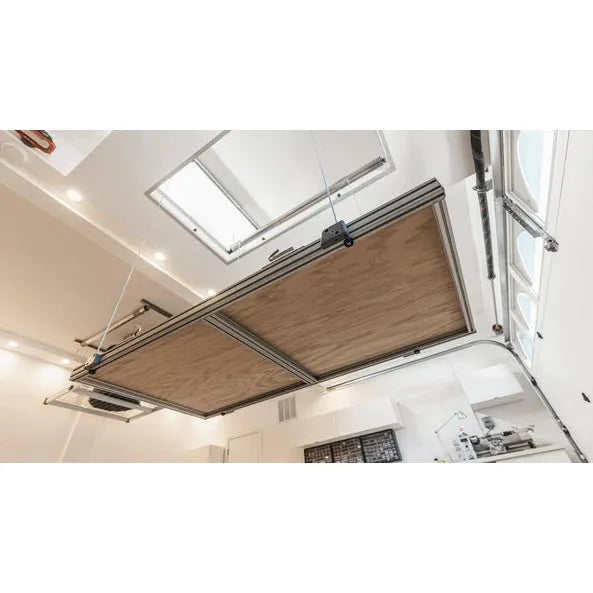

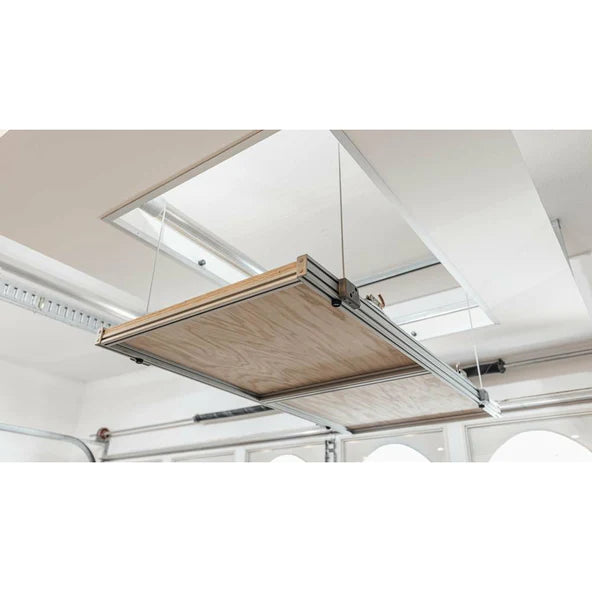

Our motorized lifting platform maximizes the overhead storage potential of your garage. The Attic-Lift comes in various sizes, colors, and lifting capacities, allowing you to modify your overhead storage to fit your needs. Opening can be up to 50"W and 55"D

• EASY INSTALL! Only attach two motors and two struts on the attic-floor
• The mounting frame area on the ceiling that is required is 5
• The Auxx-Lift has ceiling mounting struts that are installed across 3 garage ceiling's joists or ceiling supports (The long 8 ft. side is perpendicular to the joists). It is installed to at least 3 ceilings supports for extra redundancy. If you want the lift installed running with the joists you can purchase an extra hardware kit from our store.
• The auxx-lift comes standard for floor-to-ceiling heights of up to 13 ft. We offer longer cables to accommodate up to 20 ft. floor-to-ceiling heights.
• The minimum recommended clearance is 18 in between the garage door and the ceiling.

Features

• No heavy lifting

  Eliminate the safety hazard of carrying heavy items up and down the pull-down stairways. Your bulkiest items can vanish from your garage floor and safely stored up in your attic.

• Wireless Remote-Control

  Equipped with an easy to use remote control allowing you to lower/raise your items. Programmable stopping points allow you to set high and low point parameters preventing your items hitting the floor.

• Safety

  The robust lifter comes with a wide variety of safety features

• Self-leveling platform: The controller monitors and adjust cable speeds to keep platform level.
• Stop Limit: The attic-lift monitors weight on lift preventing you from overloading it.

Powerful motors

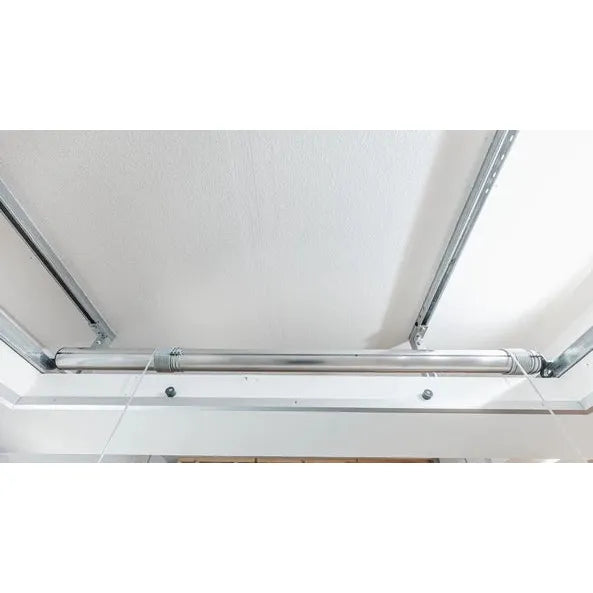

The Attic-Lift uses two tubular motors that are synced via the control unit to ensure the platform stays level.

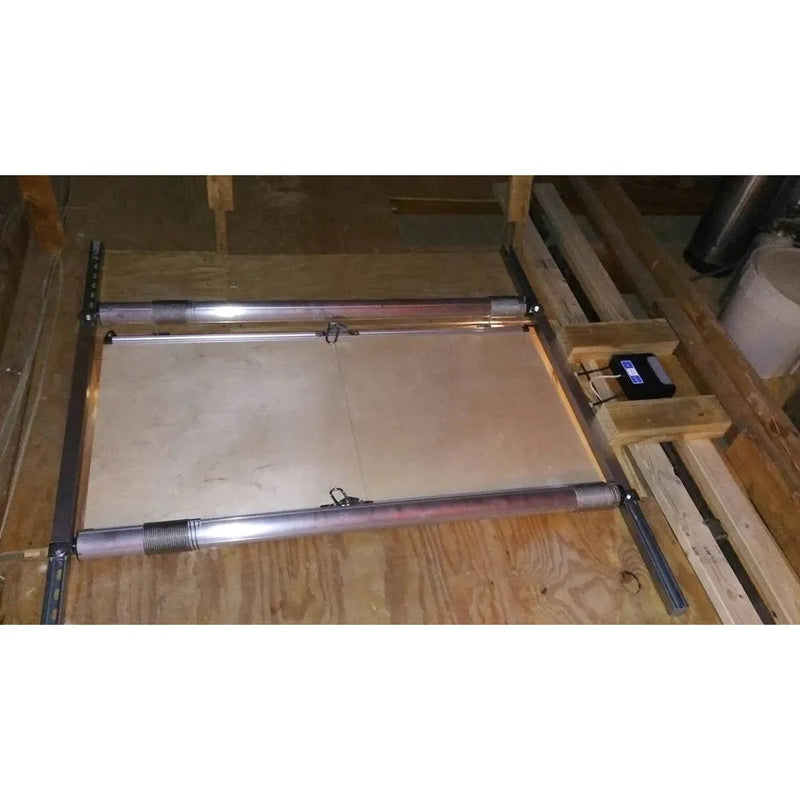

Both motors are mounted on steel strut channels which are anchors via lag screws on your attic's floor joists/rafters.

• Motors

  The Attic-Lift runs on typical household 100-120V AC, drawing 2.3 amps.

• Aircraft Cables

  The platform is hoisted by four hot-dipped galvanized 7x19 steel cables made from 133 wires each. The cables are wrapped in a vinyl coating which not only protects your hands but also seals in any lubrications, increasing its useful life.

• Vertical Travel Distance

  We offer three versions allowing for 13ft, 16ft, and 20ft vertical travel distances, respectively.

Specification

• Model:Attic-Lift 1400
• Lifting Capacity:Up to 400 lbs
• Max. Travel Distance1:16 ft

Roof Support

• Type:(2) 1 5/8" x 60" strut channel
• Fasteners:(8) 5/16" x 4" SPAX© Lag Bolts
• Mounting Area:5' x 5' over 3 joists/rafters
• Cable:1/8” Vinyl-coated Steel 7x19
• Cable Strength2:2,000 lbs

Operating Requirements

• Switch Voltage:110V / 120V
• Transmitter:433.92 MHz
• Electrical Cord:10 FT / 16 gauge / NEMA 5-15
• Min. circuit size:15 amp

Platform Specs

• Frame:T-slotted framing rail
• Material:6105-T5 aluminum alloy
• Deking:3/4 in thick Oak veenered plywood (5-ply)

Motors

• Type:IP44 (T-Motor)
• Rated Power:235 W
• Rated Current:2.2 A
• Voltage / Phase:100-120V AC / Single
• Duty Cycle @ Max. Capacity:3 min on, 15 min off3

Size and Weight

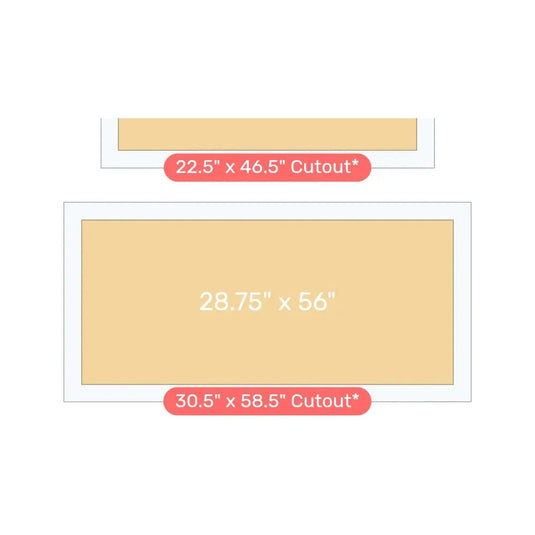

• Platform Size:20.75 in x 44 in / 28.75 in x 56 in
• Ceiling Cutout Size:22.5 in x 46.5 in / 30.5 in x 58.5 in

Easy installation

We know that installing a lift may seem intimidating. Don’t worry. The Attic-Lift was designed to be easy to install, and this guide includes everything you need for the installation process. If any step in this guide is unclear, watch our installation videos. If you do not feel comfortable performing any step yourself, please contact a handyman. Before starting, make sure to have reviewed the entire manual.

Product Warranty FAQ

What is covered?

Any defect in material and workmanship from personal, normal household use in accordance with the Owner’s Manual.

For how long?

2 years, from date of purchase

What we will do?

If your Auxx-Lift Product is defective, we will send replacement parts or, at our option, replace it at no charge to you after the defective product is returned. If we send replacement parts for your Auxx-Lift Product, we may use new or reconditioned parts. If we choose to replace your Auxx-Lift Product, we may replace it with a new or reconditioned one of the same or similar design.

How to get warranty service?

To get warranty service for your Auxx-Lift Product, you must provide proof of date and place of purchase of the product. Trained representatives will assist in diagnosing the problem and will arrange to supply you with required parts for repairs or replacement product after defective product is returned to Auxx-Lift. Please email us at info@eleganthomeusa.com.

Warranty does not cover

This warranty does not cover installation commercial use, defects resulting from accidents, damage while in transit to our service location or damage resulting from altercations misuses or abuse, lack of proper maintenance, unauthorized repair or modifications of the product, affixing of any attachment not provided with the product, staples through wiring, pinched or broken wires, broken cables power outages, use of extension cords, missing or damaged parts or discounted clearance, final sale or taped cartons fire, flood, acts of God, or failure to follow the Owner’s Manual. This warranty is the only one we will give on your Auxx-Lift Product. There are no other express warranties. Customer pays for shipping on warranty replacements.

Additional Hardware Kit

The Auxx-Lift can be mounted on any ceiling (rafters/joists/sloped ceiling) THIS KIT IS OPTIONAL: Normally the lift's motors run parallel to the ceiling joists. If you want the motors to run perpendicular to your joists you will need this kit. This additional kit will turn the platform 90 Degrees
