Garage Storage Lift Platform 400lbs w/ Remote by Auxx-Lift 1400
Installation & Specification Documents (PDF)

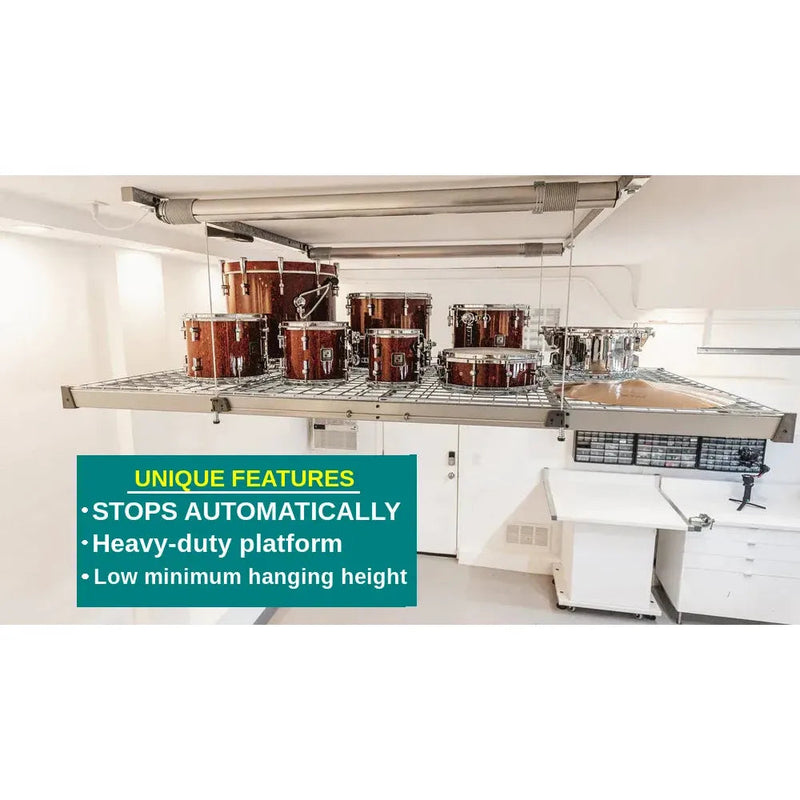

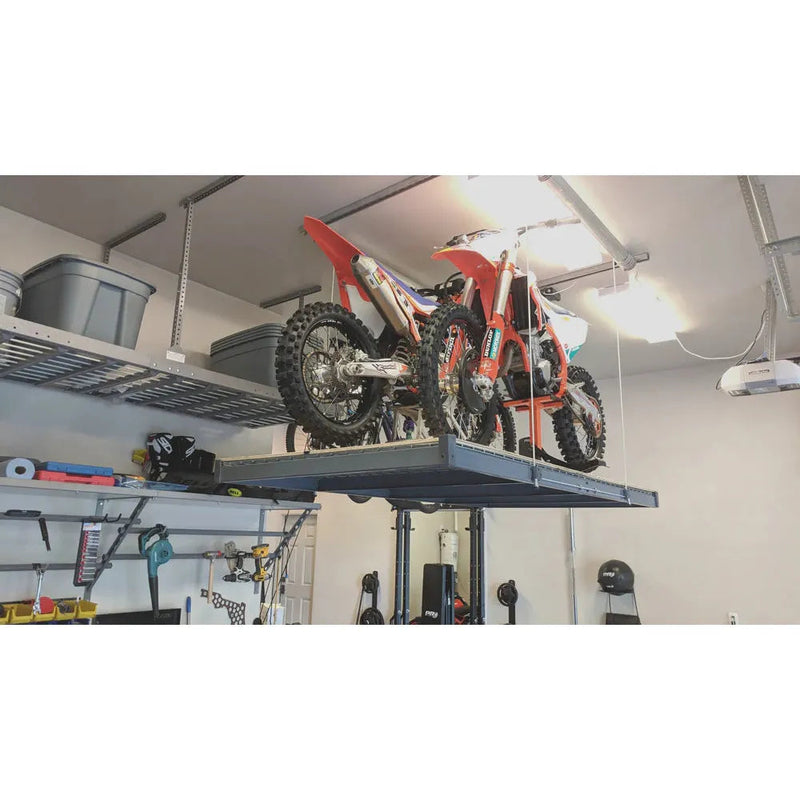

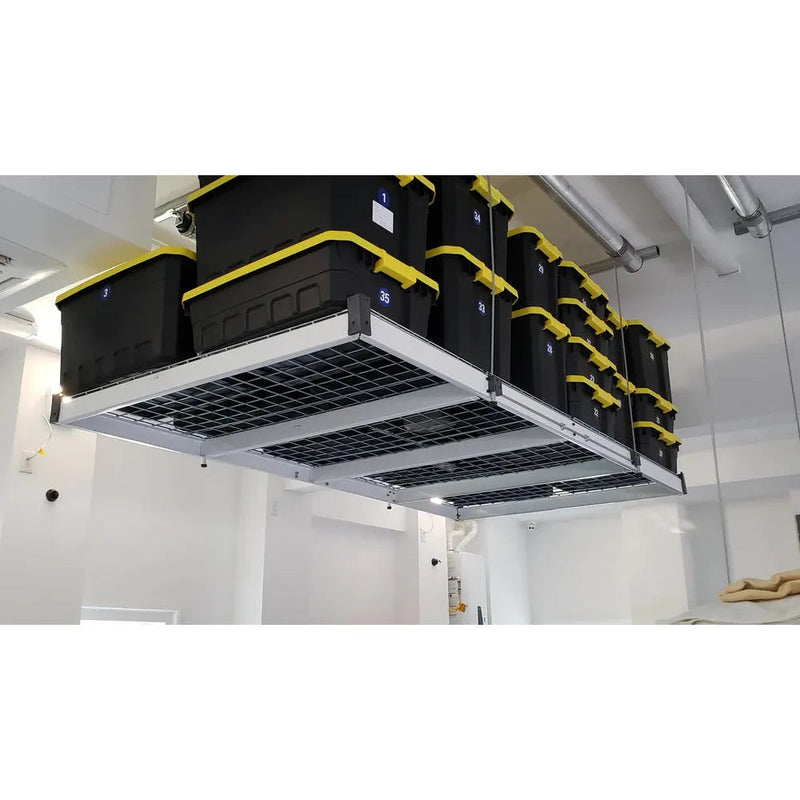

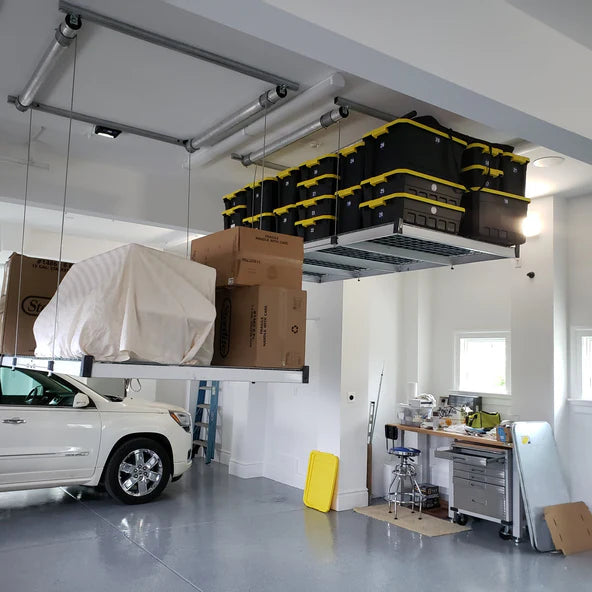

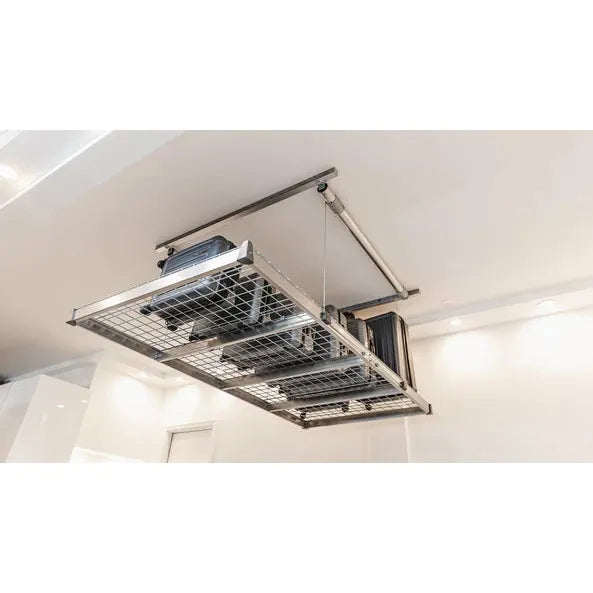

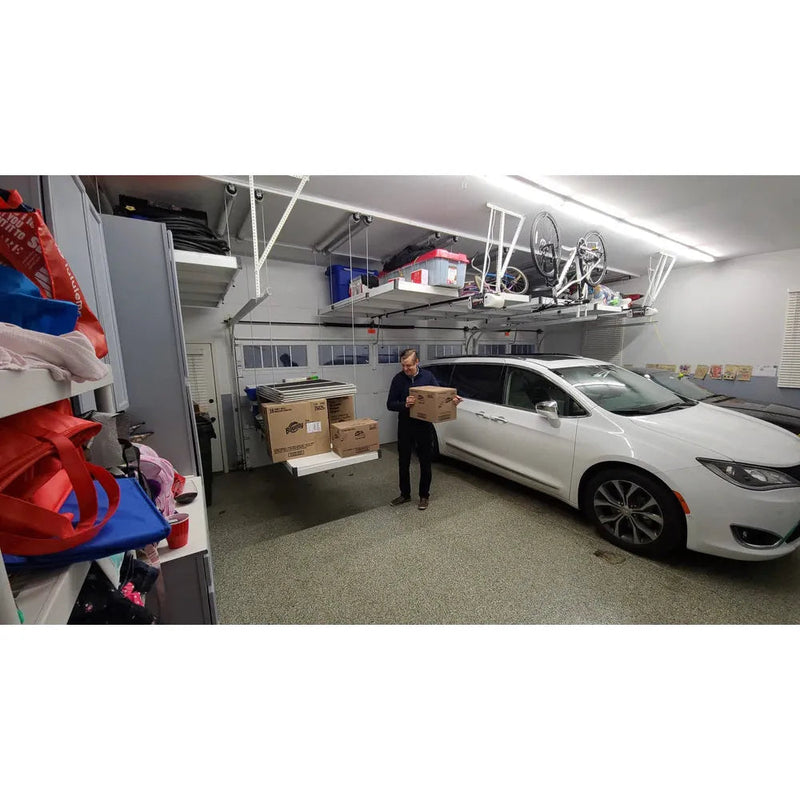

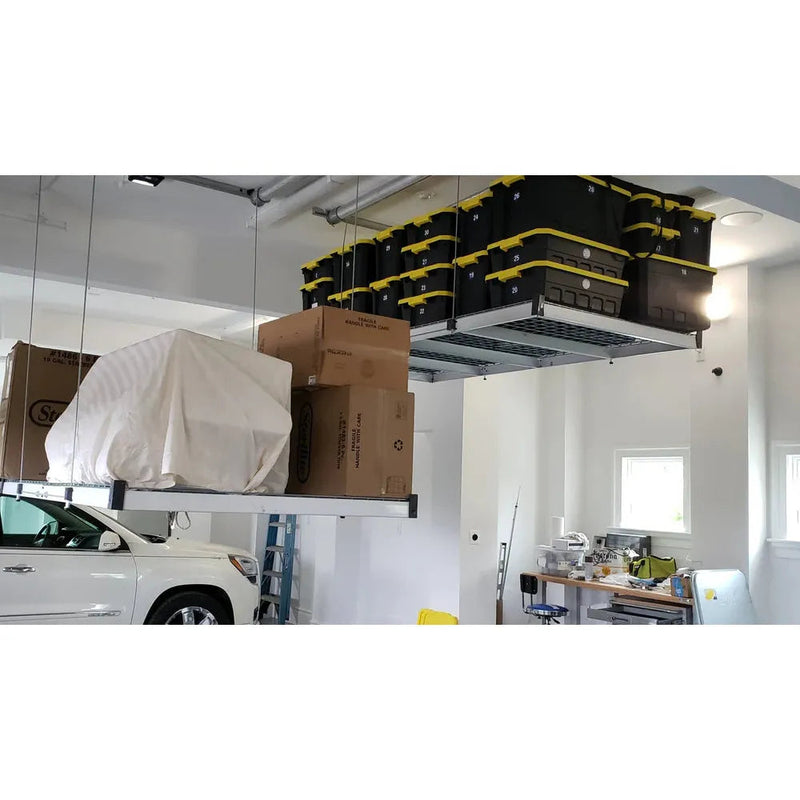

The Auxx-lift was designed to provide maximum storage, safety, convenience and a strikingly attractive design. We also eliminated the shortcomings of similar storage products such as low-quality components and safety issues. We use C-Channel beams and 1/4" wire mesh (on the platform).
It runs on standard US household power. The motor draws approximately 3.8 Amps. The 12 ft. long power cord can be plugged into the outlets placed in the ceiling for garage door openers or any other outlet

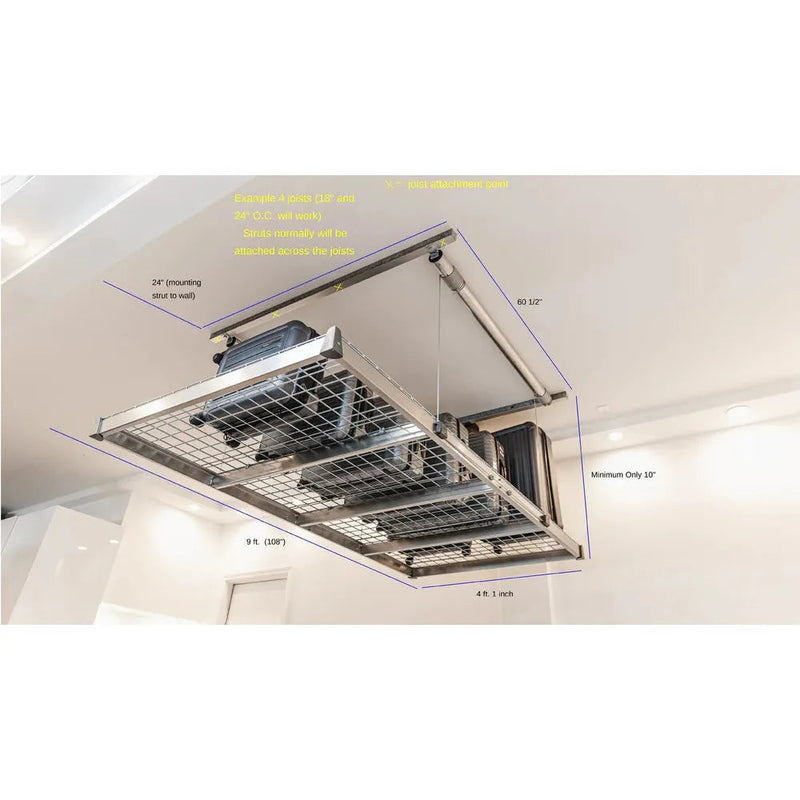

- The mounting frame area on the ceiling that is required is 5

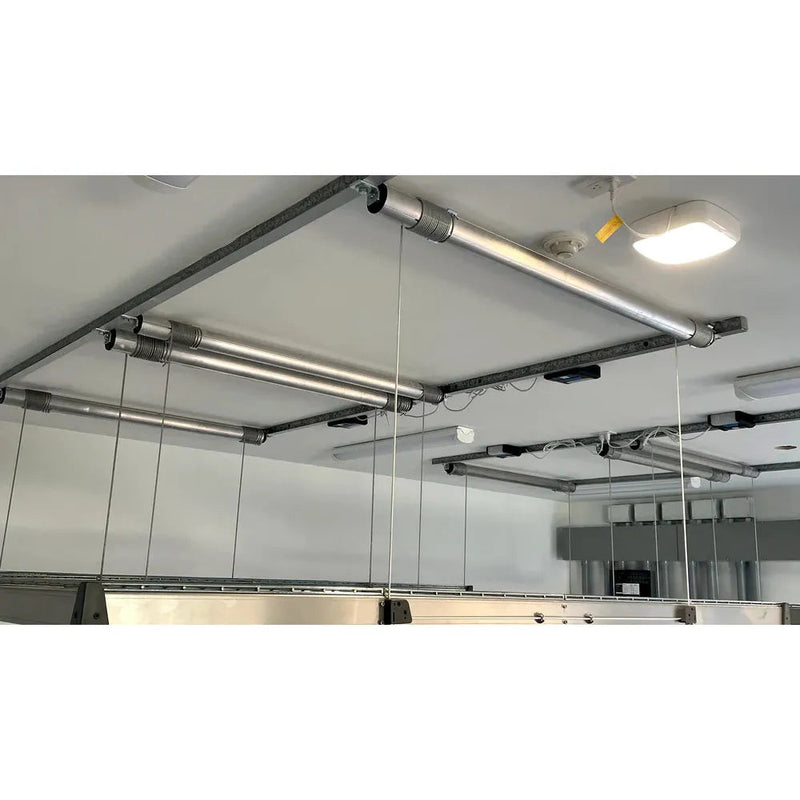

- The Auxx-Lift has ceiling mounting struts that are installed across 3 garage ceiling's joists or ceiling supports (The long 8 ft. side is perpendicular to the joists). It is installed to at least 3 ceilings supports for extra redundancy. If you want the lift installed running with the joists you can purchase an extra hardware kit from our store.
- The auxx-lift comes standard for floor-to-ceiling heights of up to 13 ft. We offer longer cables to accommodate up to 20 ft. floor-to-ceiling heights.
- The minimum recommended clearance is 18 in between the garage door and the ceiling.
Features
- Get more space and park your car
- Ideal for storing keepsakes, hobby - and sport gear items
- Stores up to 400 lb fast, safely and easily
- Beautify your home (Requires 5'x8' install area)
- Accommodates up to 13 ft. high ceilings
- No lifting or ladders
- 3/16” Steel aircraft cables with a 7200 lb working load

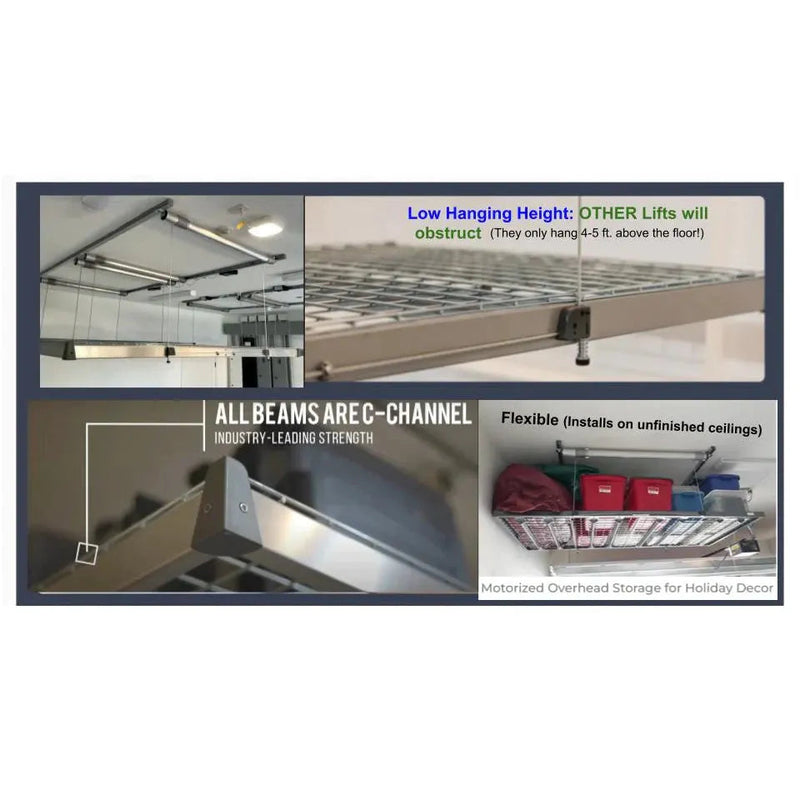

- C-Channel beams, Spax®-Lag Screws
- Incl. Phone support and step-by-step instructions
- Our platform's hanging height from the ceiling is 1 ft. (Competitor's is 3-4 ft.)
Industry Leading Safety Features
-
No heavy lifting
Eliminate the safety hazard of reaching up to grab heavy items. Per OSHA, fall from ladders is a major source of injury both on and off the job. A fall from any height – even one or two feet – could cause serious injuries such as bone fractures and head injuries.
-
Self-leveling Platform
Differential motor technology automatically adjust the weight distribution throughout to keep platform nearly level even with heavy asymmetrically loading. The controller monitors weight on the platform and will prevent you from lifting/lowering items.
-
Tested to UL-Standards
Auxx-Lift is the only lift that has been tested to the highest UL-Standard requirements with all components having a minimum Factor of Safety of 4x
Wirelessly controlled

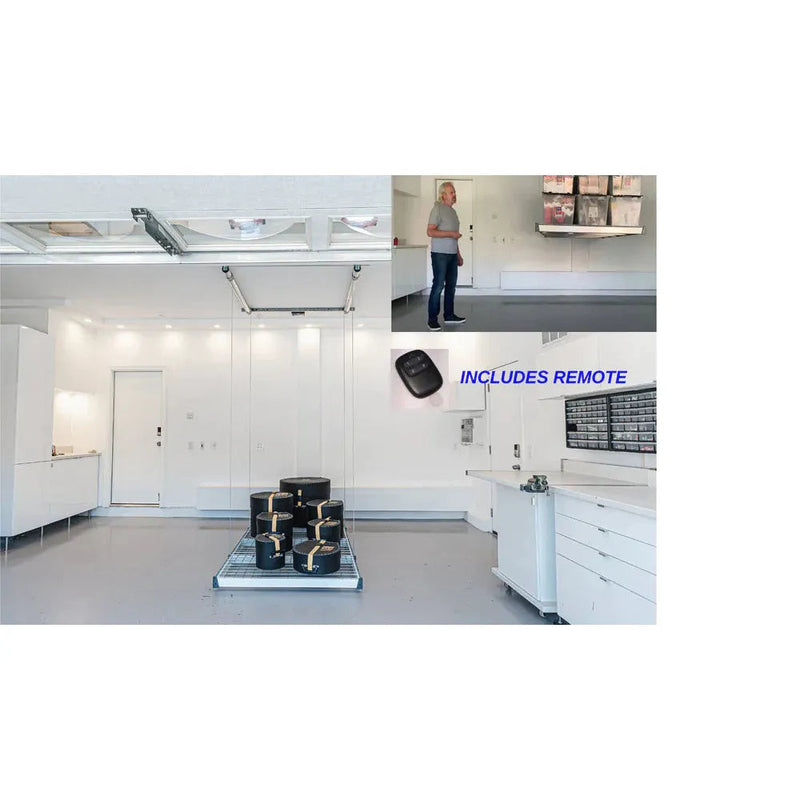

The Auxx-Lift comes with an easy to use wireless remote control allowing you to lower/raise your platform from a safe distance.
Includes
- Master Remote
- Keychain remote
- C-channel support beams
- 4 by 8 platform
- Silver motor shelves
- Attractive grey-silver finish
- Uses vinyl coated steel cables (rated a total of 7200 lb load capacity)
Requires a 110V/120V outlet (Garage door opener, etc.) - power cord is 12 ft.
Uses 1/4" x 3" T-Star Drive Grade 5 HCR Exterior Coated Washer Head PowerLags. (5'x5' mounting area required and 3 joists/rafters)
Specification
- Model: Auxx-Lift 1400
- Lifting Capacity: Up to 400 lbs
- Max. Travel Distance: 16 ft
- Min. stored height: 8 in
Roof Support
- Type:(2) 1 5/8" x 60" strut channel
- Fasteners:(8) 5/16" x 4" SPAX© Lag Bolts
- Mounting Area:5' x 5' over 3 joists/rafters

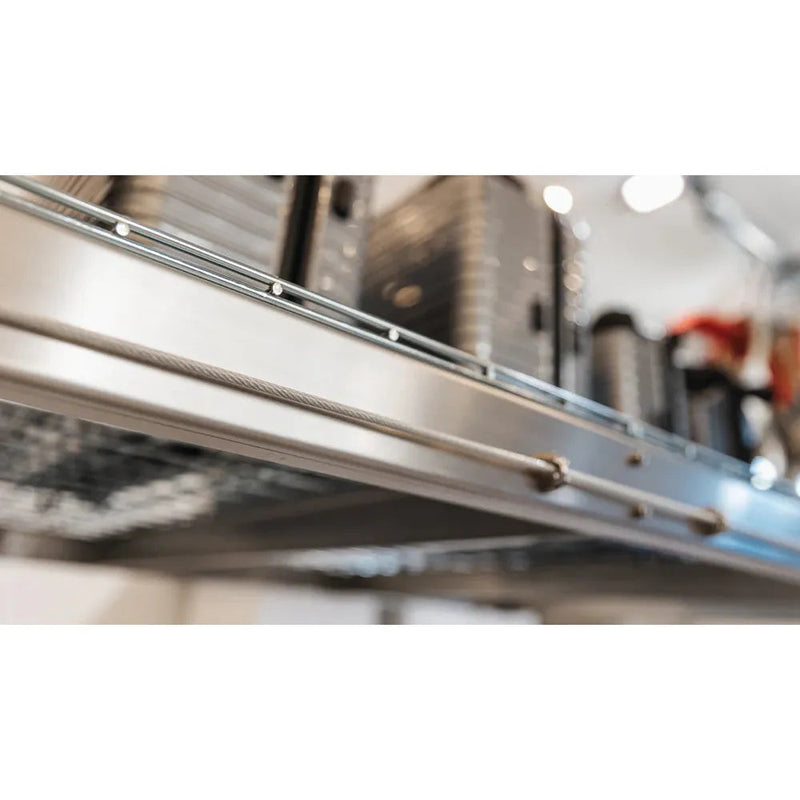

- Cable:1/8” Vinyl-coated Steel 7x19
- Cable Strength3:2,000 lbs
Operating Requirements
- Switch Voltage:110V / 120V
- Transmitter:433.92 MHz
- Electrical Cord:10 FT / 16 gauge / NEMA 5-15
- Min. circuit size:15 amp

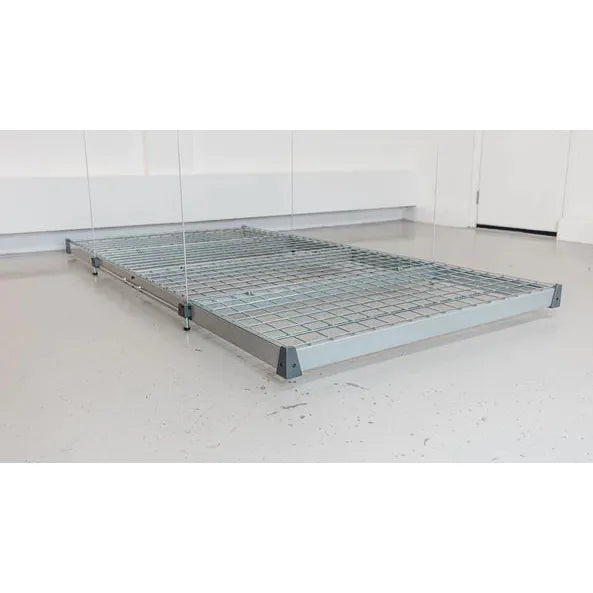

Platform Specs
- Thickness:2.5 inches
- Support Frame:C-Channels (15gauge)
- Face material:3 x 3 galv. Wire Mesh (4gauge)
Motors
- Type:IP44 (T-Motor)
- Rated Power:235 W
- Rated Current:2.2 A
- Voltage / Phase:100-120V AC / Single
- Duty Cycle @ Max. Capacity:3 min on, 15 min off4
Weight and Dimension
- Dimensions:3ft x 6ft,
- Weight:128 pounds
Product Warranty FAQ
What is covered?
Any defect in material and workmanship from personal, normal household use in accordance with the Owner’s Manual.
For how long?
2 years, from date of purchase
What we will do?
If your Auxx-Lift Product is defective, we will send replacement parts or, at our option, replace it at no charge to you after the defective product is returned. If we send replacement parts for your Auxx-Lift Product, we may use new or reconditioned parts. If we choose to replace your Auxx-Lift Product, we may replace it with a new or reconditioned one of the same or similar design.
How to get warranty service?
To get warranty service for your Auxx-Lift Product, you must provide proof of date and place of purchase of the product. Trained representatives will assist in diagnosing the problem and will arrange to supply you with required parts for repairs or replacement product after defective product is returned to Auxx-Lift. Please email us at info@eleganthomeusa.com.
Warranty does not cover
This warranty does not cover installation commercial use, defects resulting from accidents, damage while in transit to our service location or damage resulting from altercations misuses or abuse, lack of proper maintenance, unauthorized repair or modifications of the product, affixing of any attachment not provided with the product, staples through wiring, pinched or broken wires, broken cables power outages, use of extension cords, missing or damaged parts or discounted clearance, final sale or taped cartons fire, flood, acts of God, or failure to follow the Owner’s Manual. This warranty is the only one we will give on your Auxx-Lift Product. There are no other express warranties. Customer pays for shipping on warranty replacements.
